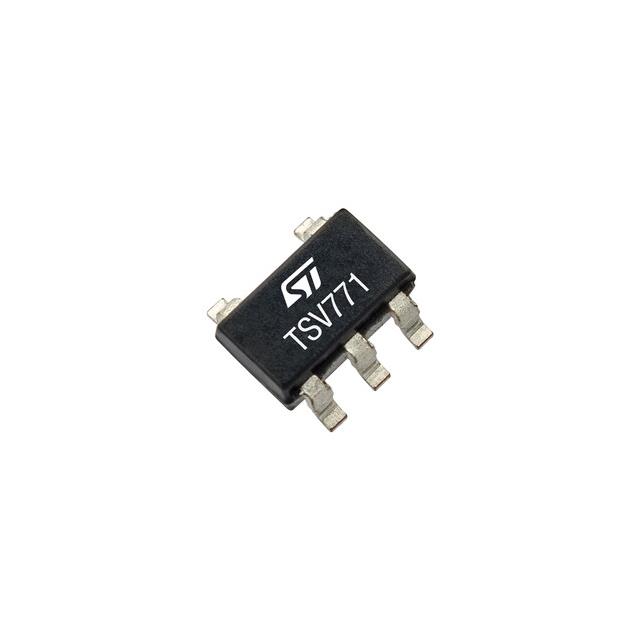

TSV771ILT
ActiveHIGH BANDWIDTH (20 MHZ) LOW OFFSET (200 ΜV) RAIL-TO-RAIL 5 V OP AMP
Deep-Dive with AI
Search across all available documentation for this part.
TSV771ILT
ActiveHIGH BANDWIDTH (20 MHZ) LOW OFFSET (200 ΜV) RAIL-TO-RAIL 5 V OP AMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSV771ILT | TSV771 Series |
|---|---|---|
| - | - | |
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 1 pA | 1 pA |
| Current - Supply | 1.9 mA | 1.9 mA |
| Gain Bandwidth Product | 20 MHz | 20 MHz |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Qualification | AEC-Q100 | AEC-Q100 |
| Slew Rate | 13 V/µs | 13 V/µs |
| Supplier Device Package | SOT-23-5 | SOT-23-5 |
| Voltage - Input Offset | 200 çV | 200 çV |
| Voltage - Supply Span (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2 V | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.27 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.08 | |||
| 100 | $ 0.88 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.27 | ||
| 10 | $ 1.13 | |||
| 25 | $ 1.08 | |||
| 100 | $ 0.88 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.58 | |||
| Tape & Reel (TR) | 3000 | $ 0.54 | ||
| 6000 | $ 0.51 | |||
| 15000 | $ 0.49 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.97 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.57 | |||
| 600 | $ 0.53 | |||
| 1200 | $ 0.51 | |||
TSV771 Series
High bandwidth (20 MHz) low offset (200 µV) rail-to-rail 5 V op amp
| Part | Output Type | Slew Rate | Operating Temperature [Min] | Operating Temperature [Max] | Amplifier Type | Number of Circuits | Current - Supply | Mounting Type | Supplier Device Package | Voltage - Input Offset | Gain Bandwidth Product | Package / Case | Voltage - Supply Span (Min) [Min] | Current - Input Bias | Grade | Voltage - Supply Span (Max) [Max] | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSV771IYLT | |||||||||||||||||
STMicroelectronics TSV771ILT | |||||||||||||||||
STMicroelectronics TSV771ILT | |||||||||||||||||
STMicroelectronics TSV771ILT | Rail-to-Rail | 13 V/µs | -40 °C | 125 °C | General Purpose | 1 | 1.9 mA | Surface Mount | SOT-23-5 | 200 çV | 20 MHz | SC-74A, SOT-753 | 2 V | 1 pA | Automotive | 5.5 V | AEC-Q100 |
STMicroelectronics TSV771IYLT | |||||||||||||||||
STMicroelectronics TSV771 | |||||||||||||||||
STMicroelectronics TSV771IYLT |
Description
General part information
TSV771 Series
The TSV771, TSV772 and TSV774 are single, dual and quad 20 MHz-bandwidth unity-gain-stable amplifiers. The rail-to-rail input stage and the slew rate of 10.5 V/µs make the TSV771, TSV772 and TSV774 ideal for low-side current measurement. The excellent accuracy provided by maximum input voltage of 200 µV allows amplifying accurately small-amplitude input signal.
The TSV771, TSV772 and TSV774 can operate from a 2.0 V to 5.5 V single supply and are fully characterized for an output capacitor of 47 pF, therefore allowing easy usage as A/D converters input buffer.
