A98100-037

Active

Omnetics

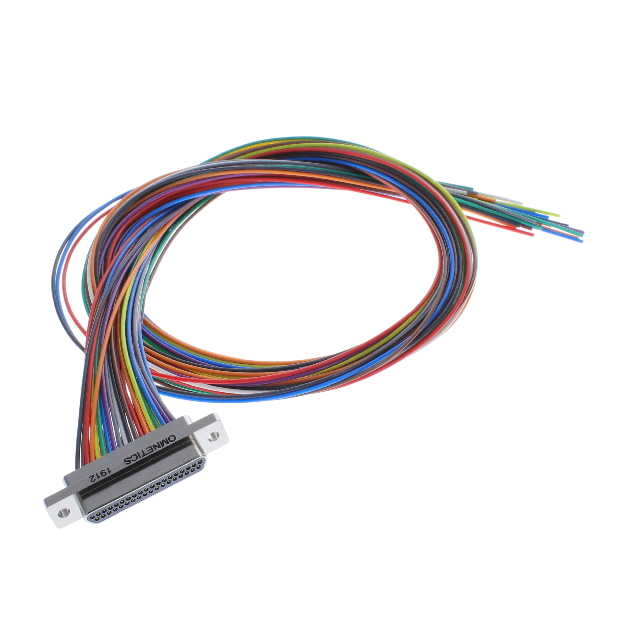

CABLE ASSY D-MIC-D 37P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-MIC-D 37P 457.2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98100-037	MMDP-037 Series

1st Connector	Plug, Male Pins	Plug, Male Pins
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	37	37
Number of Rows	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY D-MIC-D 37P 457.2MM

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type	Shielding	1st Connector	2nd Connector	Length [x]	Length [x]	Color	Contact Type	Number of Rows	Flange Feature	Current Rating (Amps)	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Connector Style	Contact Form	Dielectric Material
Omnetics A98100-037	37	50 µin	1.27 µm	Gold	D-Type, Micro-D	Unshielded	Plug, Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Individual, Multiple
Omnetics A98000-037	37	50 µin	1.27 µm	Gold								Signal	2	Housing/Shell (Unthreaded)	3 A	Aluminum, Electroless, Nickel Plated	Copper Alloy	-55 °C	125 °C	Free Hanging (In-Line)	0.05	0.05	Male Pins, Plug	D-Type, Micro-D	Stamped	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
