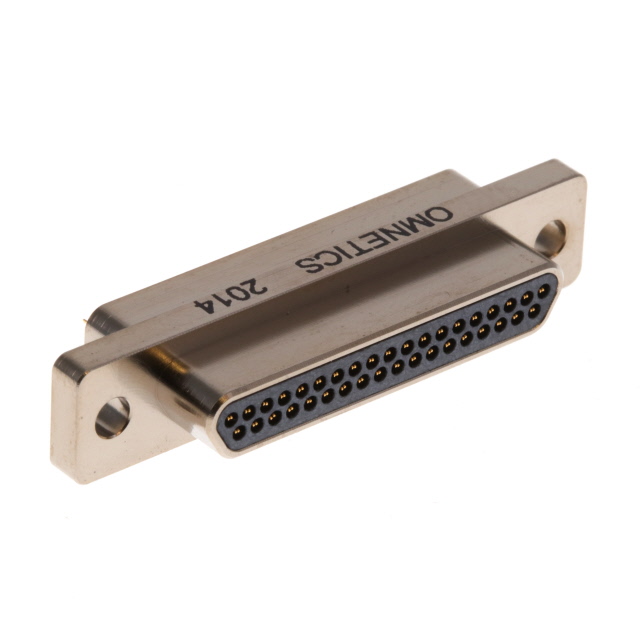

A98000-037

Active

Omnetics

CONN MICRO-D PLUG 37POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 37POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Type, Micro-D Plug, Male Pins Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A98000-037	MMDP-037 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	37	37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY D-MIC-D 37P 457.2MM

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type	Shielding	1st Connector	2nd Connector	Length [x]	Length [x]	Color	Contact Type	Number of Rows	Flange Feature	Current Rating (Amps)	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Connector Style	Contact Form	Dielectric Material
Omnetics A98100-037	37	50 µin	1.27 µm	Gold	D-Type, Micro-D	Unshielded	Plug, Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Individual, Multiple
Omnetics A98000-037	37	50 µin	1.27 µm	Gold								Signal	2	Housing/Shell (Unthreaded)	3 A	Aluminum, Electroless, Nickel Plated	Copper Alloy	-55 °C	125 °C	Free Hanging (In-Line)	0.05	0.05	Male Pins, Plug	D-Type, Micro-D	Stamped	Thermoplastic
