STOD02TPUR
ObsoleteSTMicroelectronics
IC REG AMOLED DISPLAY 2OUT 12DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STOD02TPUR
ObsoleteSTMicroelectronics
IC REG AMOLED DISPLAY 2OUT 12DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STOD02TPUR |
|---|---|
| Applications | AMOLED Display, Converter |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

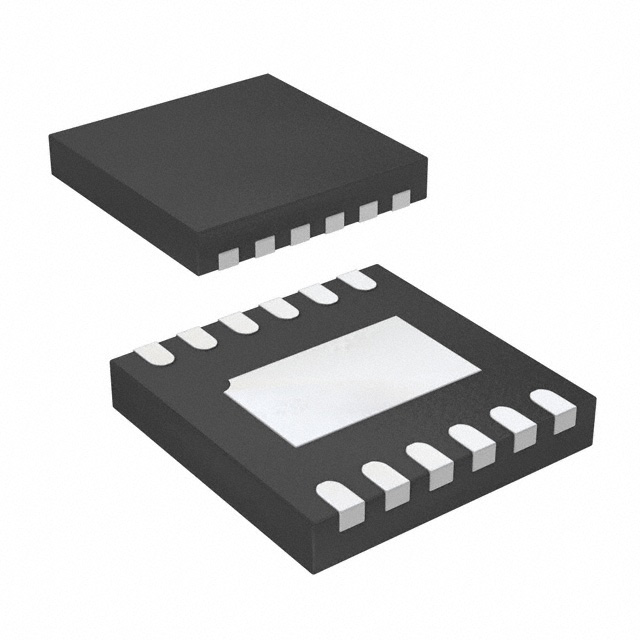

| Package / Case | 12-UFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| Voltage - Input [Max] | 4.5 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output | 4.6 V |
| Voltage - Output [Max] | -5.9 V |
| Voltage - Output [Min] | -2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STOD02 Series
- Converter, AMOLED Display Voltage Regulator IC 2 Output 12-DFN (3x3)
Documents
Technical documentation and resources
