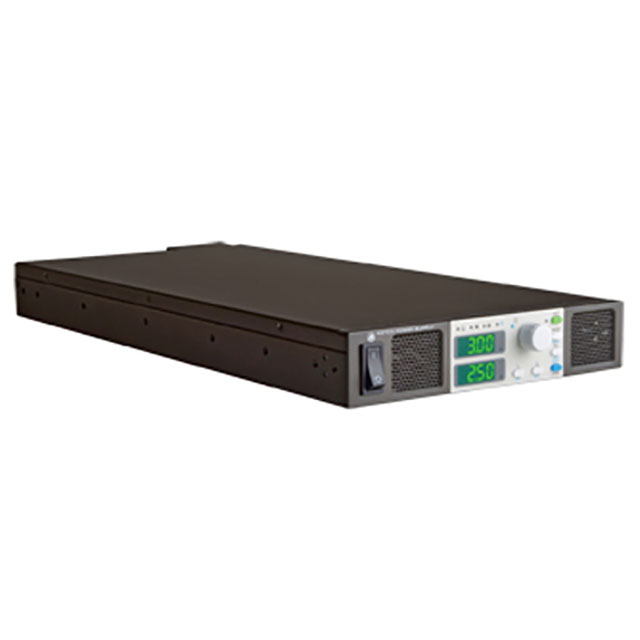

KLN 100-7.5E

Active

Kepco and Kepco Power

POWER SUPPLY 750W + LXI INTERFA

Search across all available documentation for this part.

Active

Kepco and Kepco Power

POWER SUPPLY 750W + LXI INTERFA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2294.25

General part information

0 ~ 100VDC Output Rack Mount (AC to DC) Power Supply Digital 0 ~ 7.5A Output 750W Features Programmable, RS-485

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	KLN 100-7.5E	KLN 100 Series

Accuracy - Voltmeter; Ammeter	0.02% + 3 Counts	0.02% + 3 Counts
Current - Output [Max]	7.5 A	7.5 - 30 A
Current - Output [Min]	0 A	0 A
Current Regulation - Line	-	0.1 - 20 mA
Current Regulation - Line	-	3.5 mA
Current Regulation - Line	-	0.1
Current Regulation - Line [custom]	2.75 mA, 0.1 %	0.1 - 2.75 mA
Current Regulation - Load	0.1 %, 6.55 mA	0.1 - 11.6 %
Display Type	Digital	Digital
Number of Characters	4	4
Power (Watts)	750 W	750 - 3000 W
Ripple	10 mV	10 - 23 mV
Size / Dimension [x]	18.504 "	18.504 "
Size / Dimension [x]	470 mm	470 mm
Size / Dimension [y]	8.465 in	8.465 - 16.929 in
Size / Dimension [y]	215 mm	215 - 430 mm
Size / Dimension [z]	44 mm	44 - 88 mm
Size / Dimension [z]	1.732 in	1.732 - 3.465 in
Type	Rack Mount (AC to DC)	Rack Mount (AC to DC)
Voltage - Output [Max]	100 VDC	100 VDC
Voltage - Output [Min]	0 VDC	0 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 - 190 VAC
Voltage Regulation - Line	12 mV, 0.05 %	0.05 - 12 mV
Voltage Regulation - Load	0.05 %, 12 mV	0.05 - 12 %
Voltage Regulation - Load	-	20 mV

POWER SUPPLY 750W + LXI INTERFA

Part	Type	Ripple	Voltage Regulation - Line	Voltage - Output [Max]	Display Type	Accuracy - Voltmeter; Ammeter	Current Regulation - Load	Power (Watts)	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output [Max]	Voltage Regulation - Load	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current Regulation - Line [custom]	Voltage Regulation - Load	Current Regulation - Line	Current Regulation - Line [custom]	Current Regulation - Line [custom]
Kepco and Kepco Power KLN 100-7.5E	Rack Mount (AC to DC)	10 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 6.55 mA	750 W	4	100 VAC	240 VAC	7.5 A	0.05 %, 12 mV	8.465 in	44 mm	18.504 "	470 mm	215 mm	1.732 in	0.1 %, 2.75 mA
Kepco and Kepco Power KLN 100-30	Rack Mount (AC to DC)	23 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 11.6 mA	3000 W	4	190 VAC	240 VAC	30 A	0.05 %	16.929 in	88 mm	18.504 "	470 mm	430 mm	3.465 "		20 mV	0.1 %, 20 mA
Kepco and Kepco Power KLN 100-30G	Rack Mount (AC to DC)	23 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 11.6 mA	3000 W	4	190 VAC	240 VAC	30 A	0.05 %	16.929 in	88 mm	18.504 "	470 mm	430 mm	3.465 "		20 mV	0.1 %, 20 mA
Kepco and Kepco Power KLN 100-15E	Rack Mount (AC to DC)	15 mV	0.05 %, 12 mV	100 VDC	Digital	0.02% + 3 Counts	0.1 %, 8 mA	1500 W	4	100 VAC	240 VAC	15 A	0.05 %, 12 mV	16.929 in	44 mm	18.504 "	470 mm	430 mm	1.732 in				3.5 mA	0.1
