ANT2525B00DTGNSSS

Active

Pulse Electronics

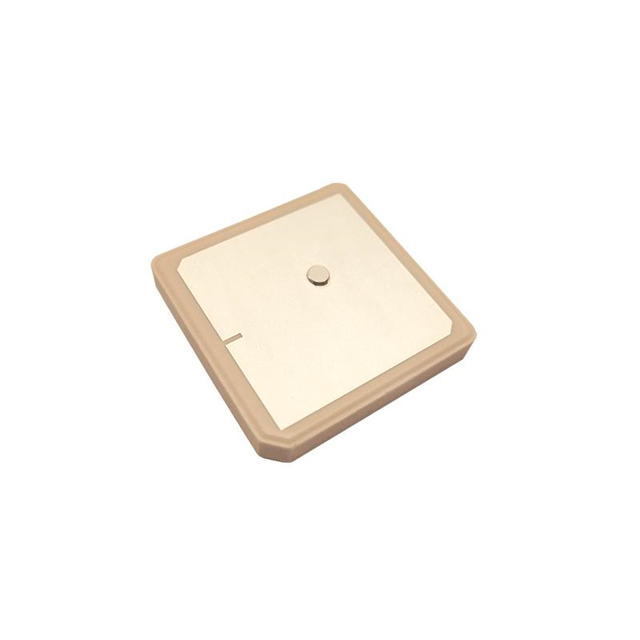

ANTENNA PATCH GNSS

Search across all available documentation for this part.

Active

Pulse Electronics

ANTENNA PATCH GNSS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, GLONASS, GNSS, GPS Ceramic Patch Pin Adhesive

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF ANT 1.575GHZ CER PATCH IPEX

Part	Applications	Frequency (Center/Band)	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Gain	Features	Number of Bands	RF Family/Standard	Termination	Antenna Type	Height (Max)	Height (Max) [Max] [z]	VSWR	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Return Loss
Pulse Electronics ANT2525JB08B1575A	GPS	1.575 GHz	2 GHz	1 GHz	UHF	5.5 dBi	LNA	1	Navigation
Pulse Electronics ANT2525B00FTGNSSS	GPS	1.58 GHz	2 GHz	1 GHz	UHF	5.16 dBic		1	Navigation	Pin	Ceramic Patch	4 mm	0.157 in	2	Adhesive	1.559 GHz	1.61 GHz	1 W
Pulse Electronics ANT2525B00DTGNSSS	Beidou, GLONASS, GNSS, GPS	1.5845 GHz	2 GHz	1 GHz	UHF	5.16 dBic		1	Navigation	Pin	Ceramic Patch	4 mm	0.157 in	2	Adhesive	1.559 GHz	1.61 GHz
Pulse Electronics ANT2525B00BT1516S	GLONASS, GPS	1.575 GHz, 1.602 GHz	2 GHz	1 GHz	UHF	4.51 dBi, 4.72 dBi		2	Navigation	Solder	Ceramic Patch	4 mm	0.157 in	2	Surface Mount	1.575 GHz	1.606 GHz		-32.828 dB, -31.357 dB
