GSF1.0202.41

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSF1.0202.41	GSF1.0202 Series

Accomodates a Fuse	False	False
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Thickness	2 mm	2 mm
Panel Thickness	0.079 in	0.079 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Ingress Protection	Panel Thickness	Panel Thickness	Connector Type	Material Flammability Rating	Termination	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Style	Mounting Type	Filter Type	Accomodates a Fuse	Approval Agency	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. GSF1.0202.41	IP40	2 mm	0.079 in	Male Blades, Receptacle	UL94 V-0	Solder	10 A	250 VAC	IEC 320-C14	Panel Mount, Snap-In, Through Hole, Right Angle	Unfiltered - Commercial		CCC, CSA, ENEC, UL
SCHURTER Inc. GSF1.0202.31	IP40			Male Blades, Receptacle	UL94 V-0	Solder	10 A	250 VAC	IEC 320-C14	Panel Mount, Snap-In, Through Hole, Right Angle	Unfiltered - Commercial		CCC, CSA, ENEC, UL	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.36

General part information

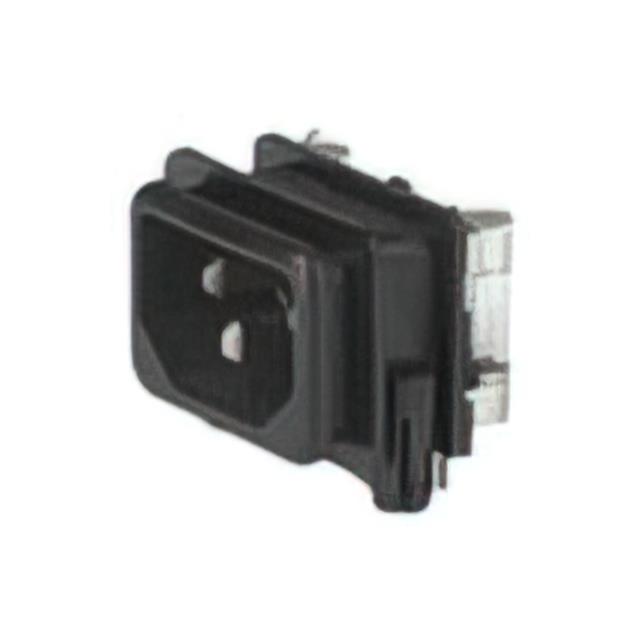

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
