2-928776-7

Active

TE Connectivity AMP Connectors

CONN PC PIN SQUARE 0.025 TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PC PIN SQUARE 0.025 TIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

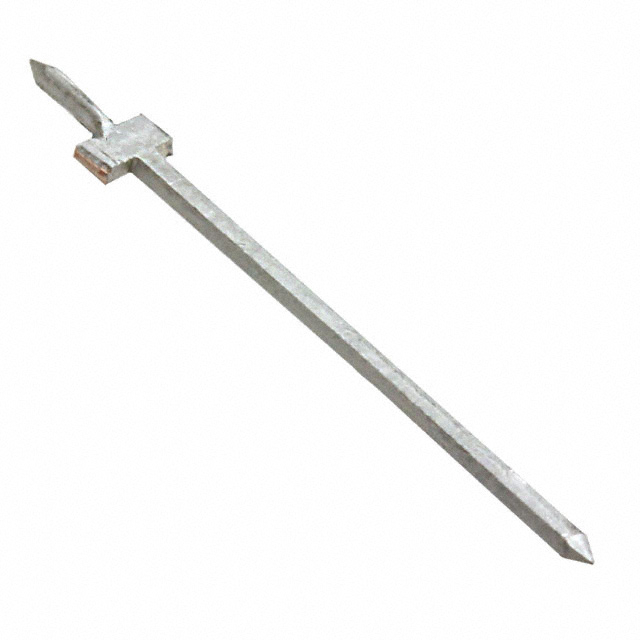

Single Post Terminal Connector Through Hole Tin 0.025" (0.64mm) Square

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2-928776-7	928776 Series

Board Thickness	1.6 mm	1.6 mm
Board Thickness	0.063 in	0.063 in
Contact Finish	Tin	Gold, Tin
Contact Finish Thickness	2 µm	0.8 - 2.5 µm
Contact Finish Thickness	78.7 µin	31.5 - 98.4 µin
Contact Material	Phosphor Bronze	Phosphor Bronze
Insulation	Non-Insulated	Non-Insulated
Length - Overall	-	0.451 - 0.598 in
Length - Overall	-	11.46 - 15.2 mm
Length - Overall [x]	0.835 in	0.661 - 0.835 in
Length - Overall [x]	21.21 mm	16.8 - 21.21 mm
Mounting Hole Diameter [diameter]	0.035 in	0.035 in
Mounting Hole Diameter [diameter]	0.89 mm	0.89 mm
Mounting Type	Through Hole	Through Hole
Pin Size - Above Flange	0.64 mm	0.64 mm
Pin Size - Above Flange	0.025 in	0.025 in
Terminal Style	Pin Retention	Pin Retention
Terminal Type	Single Post	Single Post
Termination	Press-Fit	Press-Fit

CONN PC PIN SQUARE 0.025 GOLD

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Board Thickness	Board Thickness	Pin Size - Above Flange	Pin Size - Above Flange	Insulation	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Contact Finish	Terminal Style	Termination	Length - Overall	Length - Overall	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 1-928776-4	Through Hole	31.5 µin	0.8 µm	Single Post	1.6 mm	0.063 in	0.64 mm	0.025 in	Non-Insulated	0.035 in	0.89 mm	Phosphor Bronze	Gold	Pin Retention	Press-Fit
TE Connectivity AMP Connectors 1-928776-2	Through Hole	31.5 µin	0.8 µm	Single Post	1.6 mm	0.063 in	0.64 mm	0.025 in	Non-Insulated	0.035 in	0.89 mm	Phosphor Bronze	Gold	Pin Retention	Press-Fit	0.451 in	11.46 mm
TE Connectivity AMP Connectors 2-928776-7	Through Hole	78.7 µin	2 µm	Single Post	1.6 mm	0.063 in	0.64 mm	0.025 in	Non-Insulated	0.035 in	0.89 mm	Phosphor Bronze	Tin	Pin Retention	Press-Fit			0.835 in	21.21 mm
TE Connectivity AMP Connectors 2-928776-3	Through Hole	98.4 µin	2.5 µm	Single Post	1.6 mm	0.063 in	0.64 mm	0.025 in	Non-Insulated	0.035 in	0.89 mm	Phosphor Bronze	Tin	Pin Retention	Press-Fit	0.598 in	15.2 mm
TE Connectivity AMP Connectors 1-928776-6	Through Hole	98.4 µin	2.5 µm	Single Post	1.6 mm	0.063 in	0.64 mm	0.025 in	Non-Insulated	0.035 in	0.89 mm	Phosphor Bronze	Tin	Pin Retention	Press-Fit			0.661 in	16.8 mm
