R04-11 Series

Part	Operate Time	Contact Rating (Current)	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Release Time	Contact Form	Relay Type
NTE Electronics, Inc R04-11D30-24	40 ms	30 A	24 VDC	-30 °C	60 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose
NTE Electronics, Inc R04-11A30-24	40 ms	30 A	24 VDC	-30 °C	50 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose
NTE Electronics, Inc R04-11A30-240	40 ms	30 A	240 V	-30 °C	50 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose

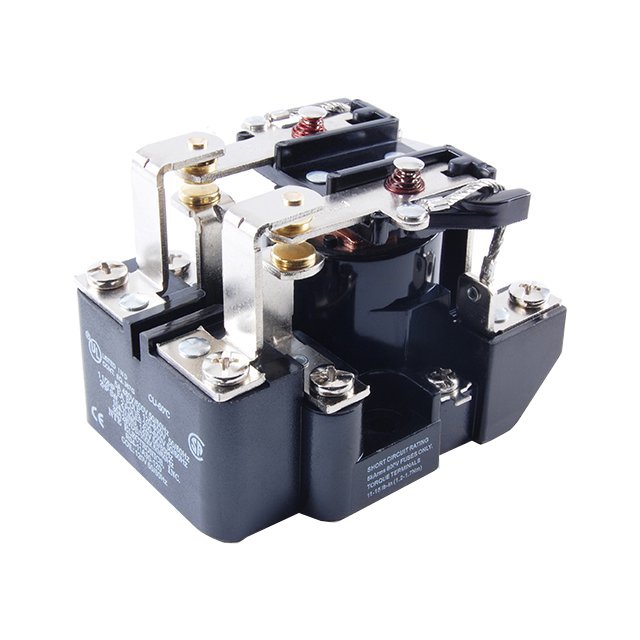

NTE Electronics, Inc R04-11D30-110	40 ms	30 A	110 V	-30 °C	60 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose
NTE Electronics, Inc R04-11A30-120	40 ms	30 A	120 V	-30 °C	50 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose
NTE Electronics, Inc R04-11D30-48	40 ms	30 A	48 V	-30 °C	60 °C	Screw Terminal	30 ms	2 2 Form C C DPDT Form	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
