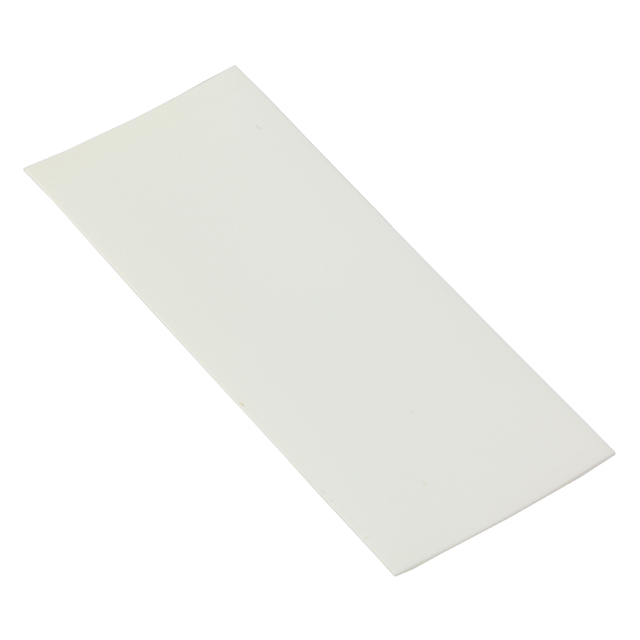

NBC-SCE-1/2-2.0-9

Active

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE WHITE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	NBC-SCE-1/2-2.0-9

Color	White
For Use With/Related Products	T312M Thermal Transfer Printer
Label Size [x]	0.5 "
Label Size [x]	12.7 mm
Label Size [y]	50 mm
Label Size [y]	1.97 "
Label Type	Heat Shrinkable
Operating Temperature [Max]	225 °C
Operating Temperature [Min]	-55 °C

Part	Label Type	Label Size [y]	Label Size [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Label Size [y]	Label Size [y]	Label Size [x]
TE Connectivity Raychem Cable Protection NBC-SCE-1-2.0-9	Heat Shrinkable	1.97 in 50 mm	25.4 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer
TE Connectivity Raychem Cable Protection NBC-SCE-3/8-2.0-9	Heat Shrinkable		9.5 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.38 "
TE Connectivity Raychem Cable Protection NBC-SCE-1/4-2.0-9	Heat Shrinkable		6.4 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.25 "
TE Connectivity Raychem Cable Protection NBC-SCE-1-1/2-2.0-9	Heat Shrinkable		38.1 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	1.5 in
TE Connectivity Raychem Cable Protection NBC-SCE-1K-3/8-2.0-9	Heat Shrinkable		9.5 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.38 "
TE Connectivity Raychem Cable Protection NBC-SCE-1/2-2.0-9	Heat Shrinkable		12.7 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.5 "
TE Connectivity Raychem Cable Protection NBC-SCE-1/8-2.0-9	Heat Shrinkable		3.4 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.135 in
TE Connectivity Raychem Cable Protection NBC-SCE-1K-1/4-2.0-9	Heat Shrinkable		6.4 mm	White	-55 °C	225 °C	T312M Thermal Transfer Printer	50 mm	1.97 "	0.25 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.12

General part information

White Heat Shrinkable Label 0.50" x 1.97" (12.7mm x 50.0mm)

Technical documentation and resources
