Q-1Z0510001006i

Active

Amphenol Custom Cable

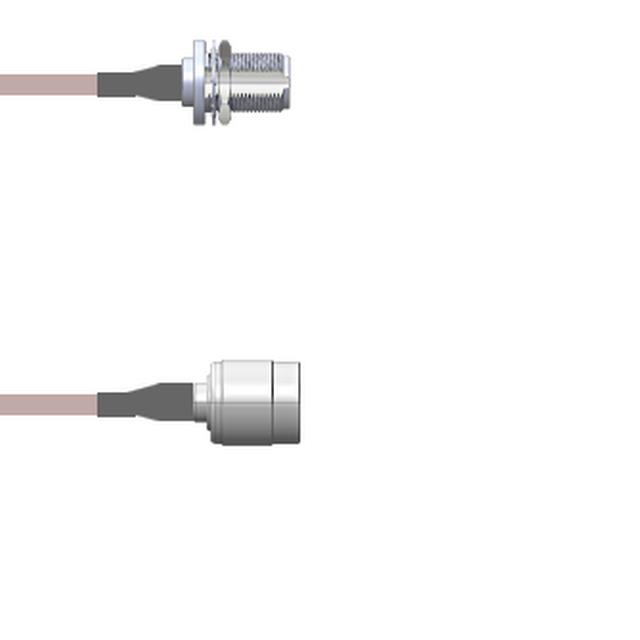

CBL ASSY NTYPE-TNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z0510001006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z0510001006i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms

Q-1Z0510 Series

Part	Overall Impedance	1st Contact Gender	Cable Type	Features	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	Length	Length	Length	1st Connector Mounting Feature	1st Connector Mounting Type	2nd Connector	1st Connector	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z0510001003M	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	3 m	118.1 in	9.8 '	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001.25M	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male				Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-1Z0510001002M	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	2 m	78.7 in	6.6 ft	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001001M	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	1 m	39.4 in	3.3 ft	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001072i	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	1.8 m	72 in	6 ft	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001.75M	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	750 mm	29.53 "		Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001084i	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	2.1 m	84 in	7 ft	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001060i	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	1.5 m	5 '	5 ft	Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001012i	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	304.8 mm	12 "		Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper
Amphenol Custom Cable Q-1Z0510001006i	50 Ohms	Female	RG-178	Shielded	Free Hanging (In-Line)	11 GHz	Male	152.4 mm	6 in		Bulkhead - Front Side Nut	Panel Mount	TNC Plug	N-Type Jack	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.00
		25	$ 60.81
		50	$ 59.62
		100	$ 58.44
		250	$ 57.25

Description

General part information

Q-1Z0510 Series

Cable Assembly Coaxial N-Type to TNC RG-178 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
