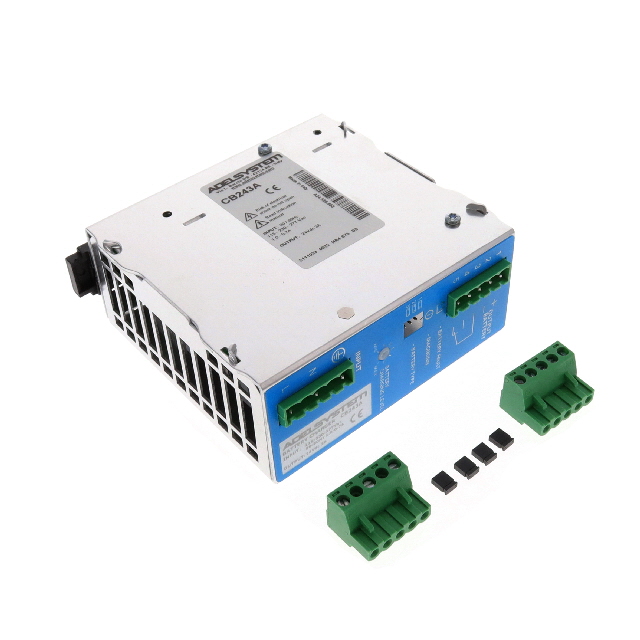

CB243A

Active

Altech Corporation

BATT CHARGER ENCLOSED 28.8V 3A

Search across all available documentation for this part.

Active

Altech Corporation

BATT CHARGER ENCLOSED 28.8V 3A

Technical Specifications

Parameters and characteristics for this part

BATT CHARGER ENCLOSED 28.8V 3A

Part	Battery Chemistry	Features	Battery Cell Size	Charge Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Cells	Termination Style	Type	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Charge Time	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Nominal
Altech Corporation CB243A	Lead Acid, Nickel Cadmium	LED Indicator	24 V	3 A	70 °C	-25 °C	DIN Rail	1	Terminal Block	Enclosed	CE	45.21 mm	100.08 mm	3.94 in	3.94 in	100.08 mm	1.78 "	15 Hrs	305 VAC	90 VAC	28.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed Battery Charger 28.8V 3A 24V
