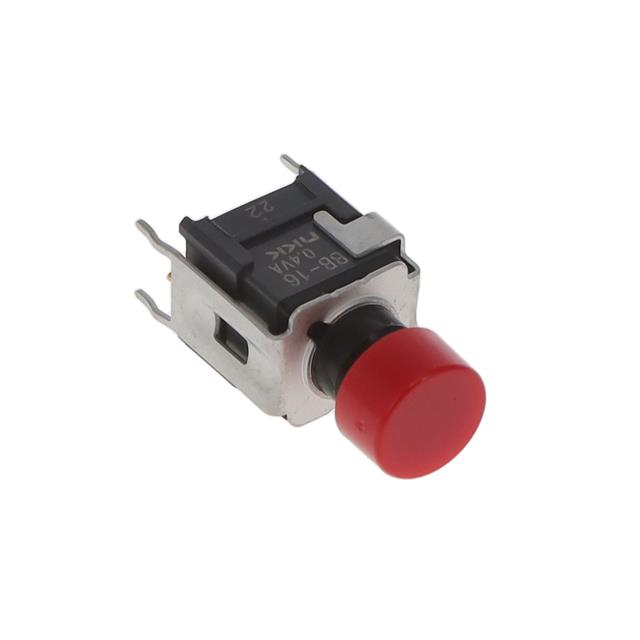

BB16AB-HC

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Marking	Electrical Life	Voltage Rating - AC	Circuit	Actuator Type	Termination Style	Features	Voltage Rating - DC	Mechanical Life	Mounting Type	Color - Actuator/Cap	Switch Function	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
NKK Switches BB16AB-HC	No Marking	25000 Steps	28 V	SPDT	Button Round	PC Pin	Antistatic	28 V	25000 Steps	Through Hole	Red	On-On	Standard	-30 ░C	85 °C	0.4 VA
NKK Switches BB16AB-HB	No Marking	25000 Steps	28 V	SPDT	Button Round	PC Pin	Antistatic	28 V	25000 Steps	Through Hole	White	On-On	Standard	-30 ░C	85 °C	0.4 VA
NKK Switches BB16AB-FA	No Marking	25000 Steps	28 V	SPDT	Button Round	PC Pin	Antistatic	28 V	25000 Steps	Through Hole	Black	On-On	Standard	-30 ░C	85 °C	0.4 VA
NKK Switches BB16AB-FC	No Marking	25000 Steps	28 V	SPDT	Button Round	PC Pin	Antistatic	28 V	25000 Steps	Through Hole	Red	On-On	Standard	-30 ░C	85 °C	0.4 VA
NKK Switches BB16AB-HA	No Marking	25000 Steps	28 V	SPDT	Button Round	PC Pin	Antistatic	28 V	25000 Steps	Through Hole	Black	On-On	Standard	-30 ░C	85 °C	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
