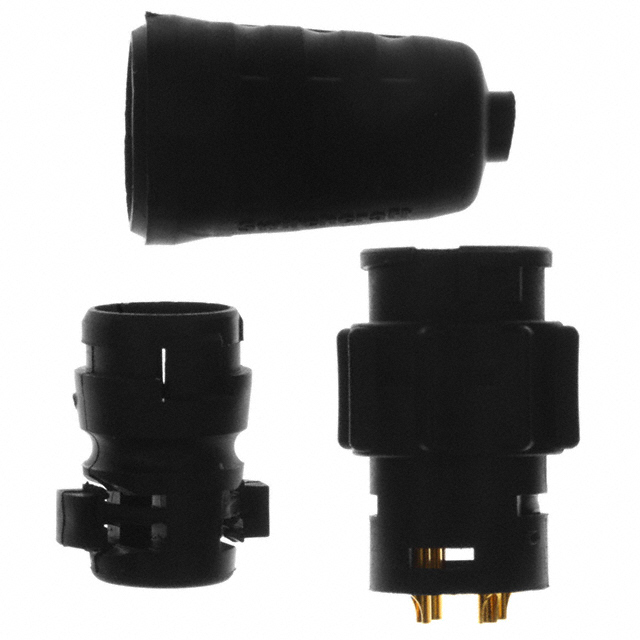

EN3L4MX

Active

Switchcraft Inc.

CONN CIRCULAR PIN 4 POS SOLDER CUP ST CABLE MOUNT 4 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L4MX

Active

Switchcraft Inc.

CONN CIRCULAR PIN 4 POS SOLDER CUP ST CABLE MOUNT 4 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	7	$ 10.46
		10	$ 10.37
		25	$ 10.28
Digikey	Bulk	1	$ 9.22
		10	$ 8.30
		25	$ 7.82
		50	$ 7.62
		100	$ 7.42
		300	$ 6.62
		500	$ 6.22
		1000	$ 6.19

Description

General part information

EN3L4M Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L4MX	EN3L4M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3L4M Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Number of Positions	Insert Material	Backshell Material, Plating	Mounting Type	Fastening Type	Cable Opening [diameter]	Cable Opening [diameter]	Color	Contact Finish - Mating	Shielding	Voltage Rating	Termination	Material Flammability Rating	Contact Material	Applications	Features	Connector Type	Current Rating (Amps)	Ingress Protection
Switchcraft Inc. EN3L4MCKX	Plastic	65 °C	-40 °C	Keyed	4	Elastomer	Thermoplastic	Free Hanging (In-Line)	Bayonet Lock	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Black	Gold	Unshielded	250 VAC	Crimp	UL94 V-0	Copper Alloy	General Purpose, Instrumentation, Marine, Medical	Backshell, Cable Clamp	Male Pins, Receptacle	7.5 A	IP66/IP68
Switchcraft Inc. EN3L4MCX	Plastic	65 °C	-40 °C	Keyed	4	Elastomer	Thermoplastic	Free Hanging (In-Line)	Bayonet Lock	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Black	Gold	Unshielded	250 VAC	Crimp	UL94 V-0	Copper Alloy	General Purpose, Instrumentation, Marine, Medical	Backshell, Cable Clamp	Male Pins, Receptacle	7.5 A	IP66/IP68
Switchcraft Inc. EN3L4MX	Plastic	65 °C	-40 °C	Keyed	4	Elastomer	Thermoplastic	Free Hanging (In-Line)	Bayonet Lock	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Black	Gold	Unshielded	250 VAC		UL94 V-0	Copper Alloy	General Purpose, Instrumentation, Marine, Medical	Backshell, Cable Clamp	Male Pins, Receptacle	7.5 A	IP66/IP68
Switchcraft Inc. EN3L4MKX	Plastic	65 °C	-40 °C	Keyed	4	Elastomer	Thermoplastic	Free Hanging (In-Line)	Bayonet Lock	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Black	Gold	Unshielded	250 VAC		UL94 V-0	Copper Alloy	General Purpose, Instrumentation, Marine, Medical	Backshell, Cable Clamp	Male Pins, Receptacle	7.5 A	IP66/IP68
