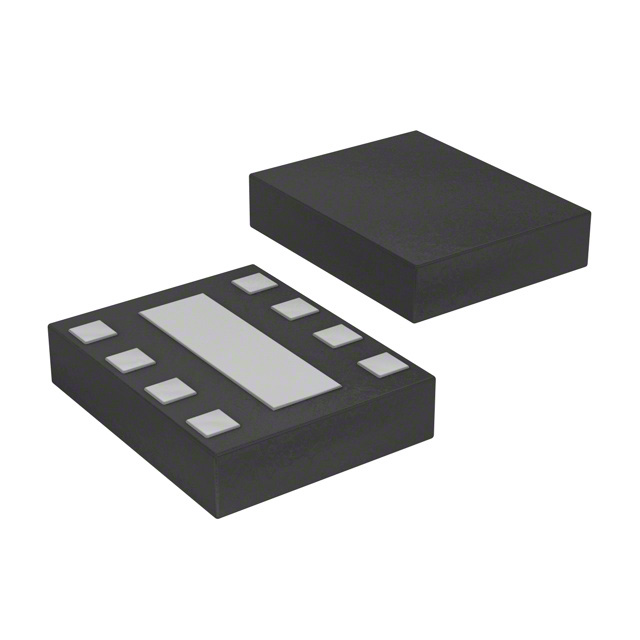

USBP01-5M8
ActiveSTMicroelectronics
TVS DIODE 3VWM 8UQFN
Deep-Dive with AI
Search across all available documentation for this part.
USBP01-5M8
ActiveSTMicroelectronics
TVS DIODE 3VWM 8UQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USBP01-5M8 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.2 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-XFDFN Exposed Pad |
| Power - Peak Pulse | 200 W |
| Power Line Protection | True |
| Supplier Device Package | 8-µQFN |
| Type | Steering |
| Unidirectional Channels [custom] | 5 |
| Voltage - Reverse Standoff (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
USBP01 Series
TVS DIODE 3VWM 8UQFN
| Part | Supplier Device Package | Power Line Protection | Type | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Package / Case | Unidirectional Channels [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance @ Frequency | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics USBP01-5M8 | 8-µQFN | Steering | 3 V | 200 W | 8-XFDFN Exposed Pad | 5 | -55 °C | 150 °C | 0.2 pF | General Purpose | Surface Mount |
Description
General part information
USBP01 Series
Clamp Ipp Tvs Diode Surface Mount 8-µQFN (1.7x1.35)
Documents
Technical documentation and resources
No documents available
