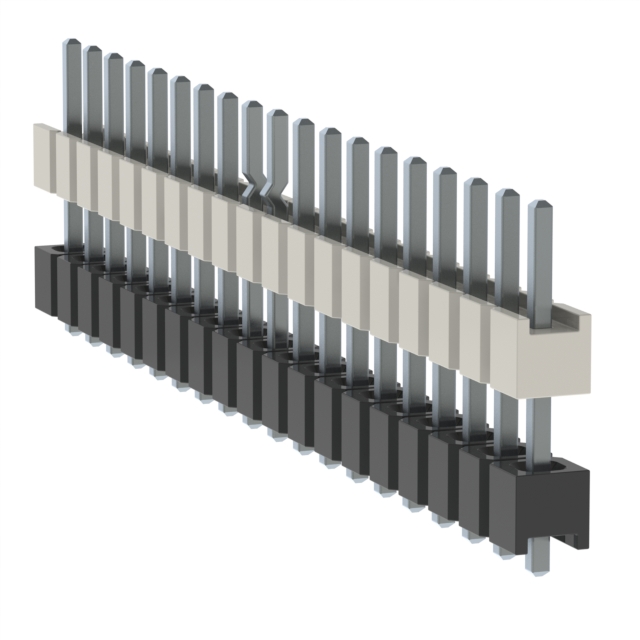

HW-19-08-T-S-315-094-LL

Active

Samtec Inc.

CONN HDR 19POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 19POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Length - Tail [x]	Length - Tail [x]	Termination	Number of Positions	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Mounting Type	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Color	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. HW-19-08-T-S-315-094-LL	2.388 mm	0.094 "	Kinked Pin Solder	19	0.53 in	13.462 mm	0.315 in	8 mm	Tin	Through Hole	1	0.121 in	3.073 mm	2.54 mm	0.1 in	Black
Samtec Inc. HW-19-08-G-D-356-SM			Solder	38	0.465 in	11.811 mm	0.356 in	9.042 mm	Gold	Surface Mount	2	0.109 in	2.769 mm	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	0.25 Ám	10 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
