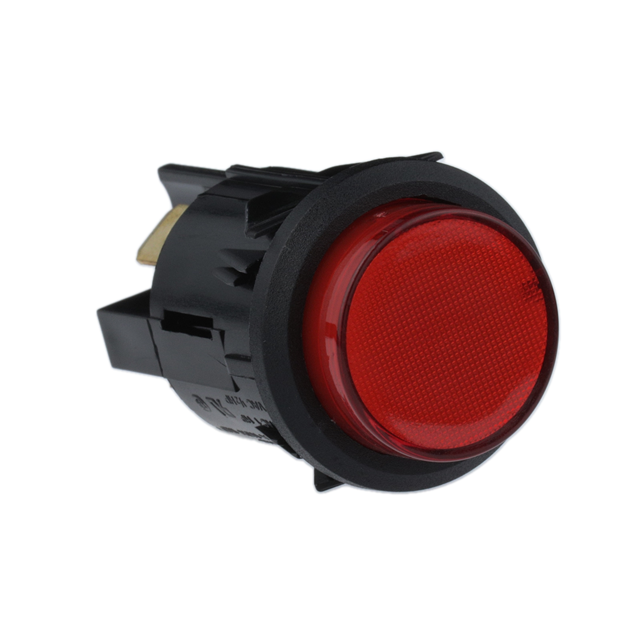

C7053AFNAA

Active

BULGIN LIMITED

SWITCH PB ON-OFF DP ILLUM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PB ON-OFF DP ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	C7053AFNAA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	16 A
Ingress Protection	IP40
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Illuminated, Standard
Voltage Rating - AC	250 V

Part	Type	Voltage Rating - AC	Actuator Marking	Actuator Type	Ingress Protection	Current Rating (Amps)	Mounting Type	Switch Function	Color - Actuator/Cap	Termination Style	Circuit	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Illumination Type, Color
BULGIN LIMITED C7053AFNAB	Illuminated Standard	250 V	No Marking	Button Round	IP40	16 A	Panel Mount Snap-In	On-Off	Green	Quick Connect - 0.250" (6.3mm)	DPST	25 mm
BULGIN LIMITED C7053AFBG2	Illuminated Standard	250 V	No Marking	Button Round	IP40	16 A	Panel Mount Snap-In	On-Off	Green	Quick Connect - 0.250" (6.3mm)	DPST	25 mm	125 VAC	Green Neon
BULGIN LIMITED C7053AFNAA	Illuminated Standard	250 V	No Marking	Button Round	IP40	16 A	Panel Mount Snap-In	On-Off	Red	Quick Connect - 0.250" (6.3mm)	DPST	25 mm
BULGIN LIMITED C7053AFBR2	Illuminated Standard	250 V	No Marking	Button Round	IP40	16 A	Panel Mount Snap-In	On-Off	Red	Quick Connect - 0.250" (6.3mm)	DPST	25 mm	125 VAC	Neon Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard, Illuminated Panel Mount, Snap-In
