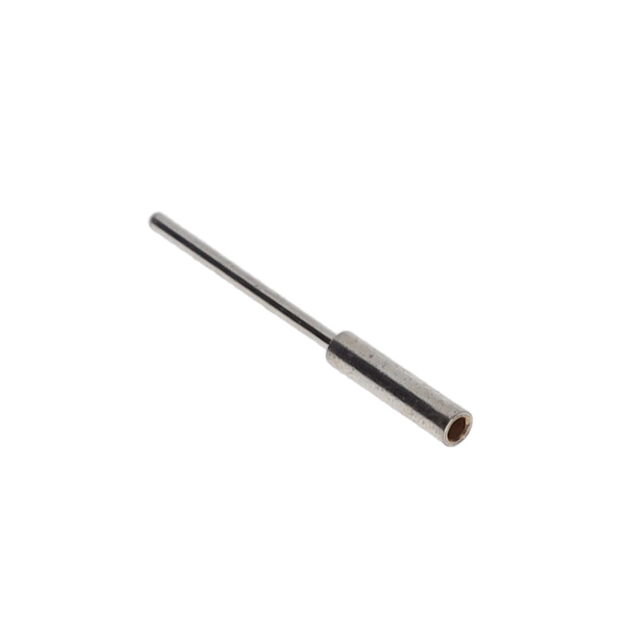

0461-1-15-01-21-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0461-1-15-01-21-27-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.041 in
Flange Diameter [diameter]	1.04 mm
Length - Overall [x]	11.43 mm
Length - Overall [x]	0.45 in
Mounting Hole Diameter [diameter]	0.51 mm
Mounting Hole Diameter [diameter]	0.02 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Solder

0461-1 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Socket Depth	Socket Depth	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Mill-Max Manufacturing Corp. 0461-1-15-15-21-14-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	10 Áin	0.25 Ám	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0461-1-15-01-21-14-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	10 Áin	0.25 Ám	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0461-1-15-01-21-02-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	100 µin	2.54 µm	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Tin-Lead	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0461-1-15-01-11-27-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	30 Áin	0.76 Ám	0.041 in	1.04 mm	Solder					Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 0461-1-15-01-21-27-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	30 Áin	0.76 Ám	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0461-1-15-01-11-02-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	100 µin	2.54 µm	0.041 in	1.04 mm	Solder					Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Tin-Lead	3.81 mm	0.15 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 0461-1-15-15-21-27-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	30 Áin	0.76 Ám	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0461-1-15-80-21-14-04-0	-55 °C	125 °C	Beryllium Copper	0.79 mm	0.031 in	0.46 mm	0.018 in	10 Áin	0.25 Ám	0.041 in	1.04 mm	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.51 mm	0.02 in	11.43 mm	0.45 in	Gold	3.81 mm	0.15 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.30
		10	$ 1.10
		25	$ 1.06
		50	$ 1.03
		100	$ 0.99
		250	$ 0.90
		500	$ 0.81
		1000	$ 0.72
		3000	$ 0.65

Description

General part information

0461-1 Series

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Solder

Documents

Technical documentation and resources

No documents available
