AUIRL7732S2TR

Active

Infineon Technologies

INFINEON’S AUIRL7732S2TR IS AN AUTOMOTIVE SEMICONDUCTOR WITH HIGH EFFICIENCY AND RELIABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Search across all available documentation for this part.

Active

Infineon Technologies

INFINEON’S AUIRL7732S2TR IS AN AUTOMOTIVE SEMICONDUCTOR WITH HIGH EFFICIENCY AND RELIABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRL7732S2TR

Current - Continuous Drain (Id) @ 25°C	14 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	33 nC
Input Capacitance (Ciss) (Max) @ Vds	2020 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

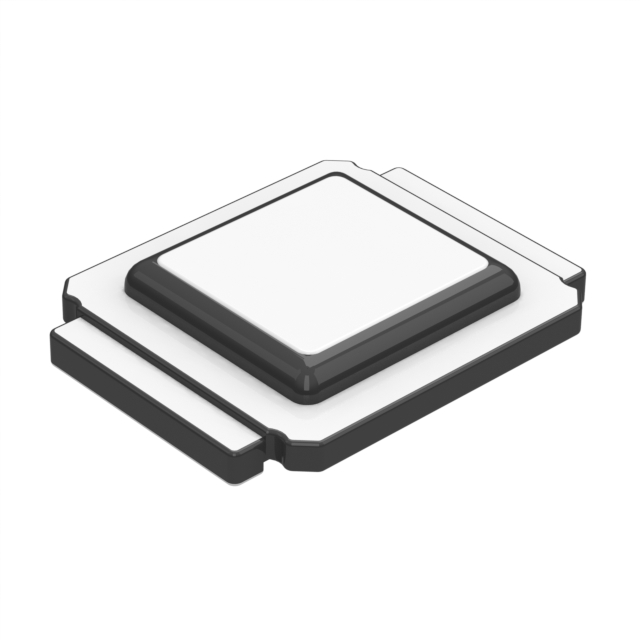

Package / Case	DirectFET™ Isometric SC
Power Dissipation (Max)	2.2 W, 41 W
Rds On (Max) @ Id, Vgs	6.6 mOhm
Supplier Device Package	DIRECTFET™ SC
Technology	MOSFET (Metal Oxide)
Vgs (Max)	16 V
Vgs(th) (Max) @ Id	2.5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Drain to Source Voltage (Vdss)	Vgs (Max)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Supplier Device Package	FET Type	Power Dissipation (Max)	Technology	Package / Case
Infineon Technologies AUIRL7732S2TR	-55 °C	175 ░C	33 nC	14 A	2020 pF	Surface Mount	40 V	16 V	2.5 V	4.5 V 10 V	6.6 mOhm	DIRECTFET™ SC	N-Channel	2.2 W 41 W	MOSFET (Metal Oxide)	DirectFET™ Isometric SC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 40 V 14A (Ta) 2.2W (Ta), 41W (Tc) Surface Mount DIRECTFET™ SC
