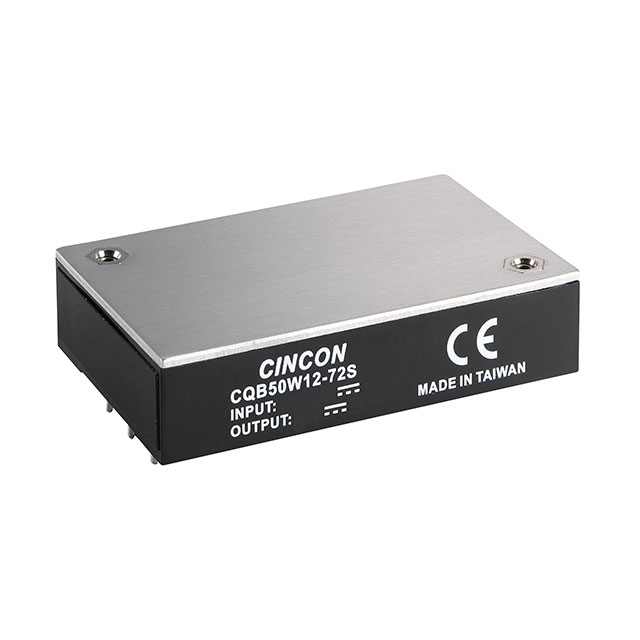

CQB50W12-72S48N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CQB50W12-72S48N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 48V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQB50W12-72S48N

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus, CE
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.05 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power (Watts)	50 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Standard Number	60950-1
Standard Number	50155
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	14 V
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

CQB50W12 Series

Part	Package / Case	Current - Output (Max) [Max]	Type	Approval Agency	Efficiency	Features	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Power (Watts)	Standard Number	Standard Number	Supplier Device Package
Cincon Electronics Co. LTD CQB50W12-72S05N	Module	6 A	Isolated Module	CB CE cURus	83 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	5 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active Low Enable	-40 °C	100 °C	ITE (Commercial) Railway	30 W	60950-1	50155	Module
Cincon Electronics Co. LTD CQB50W12-72S48	Module	1.05 A	Isolated Module	CB CE cURus	88 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	48 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active High Enable	-40 °C	100 °C	ITE (Commercial) Railway	50 W	60950-1	50155	Module
Cincon Electronics Co. LTD CQB50W12-72S24N	Module	2.1 A	Isolated Module	CB CE cURus	89 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	24 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active Low Enable	-40 °C	100 °C	ITE (Commercial) Railway	50 W	60950-1	50155	Module
Cincon Electronics Co. LTD CQB50W12-72S48N	Module	1.05 A	Isolated Module	CB CE cURus	88 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	48 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active Low Enable	-40 °C	100 °C	ITE (Commercial) Railway	50 W	60950-1	50155	Module
Cincon Electronics Co. LTD CQB50W12-72S12	Module	4.2 A	Isolated Module	CB CE cURus	87 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active High Enable	-40 °C	100 °C	ITE (Commercial) Railway	50 W	60950-1	50155	Module
Cincon Electronics Co. LTD CQB50W12-72S05	Module	6 A	Isolated Module	CB CE cURus	83 %	OCP OTP OVP Remote On/Off SCP UVLO	160 V	1	14 V	Through Hole	5 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	3000 V	Active High Enable	-40 °C	100 °C	ITE (Commercial) Railway	30 W	60950-1	50155	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 108.00

Description

General part information

CQB50W12 Series

Isolated Module DC DC Converter 1 Output 48V 1.05A 14V - 160V Input
