Technical Specifications
Parameters and characteristics for this part
| Specification | Q16F1CXXG110E |
|---|---|
| Current | 6 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 5 mcd |
| Panel Cutout Dimensions | 0.63 in |
| Panel Cutout Dimensions | 16 mm |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 17.27 | |
Description
General part information
Q16F1CXXG Series

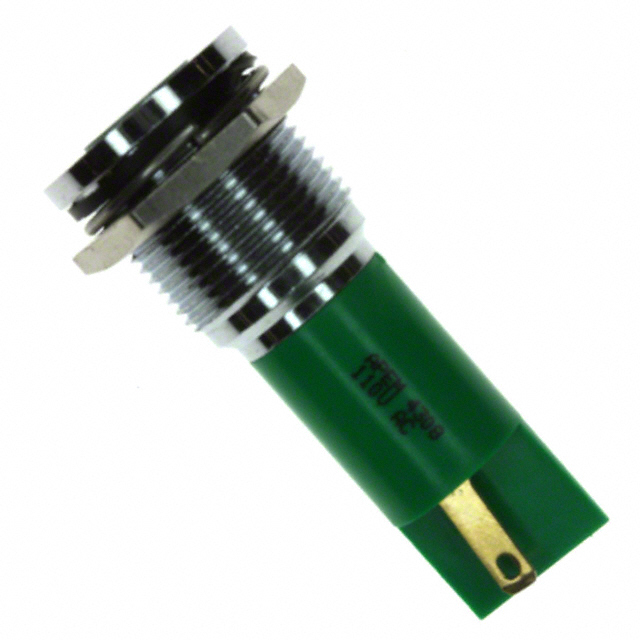

LED Panel Indicator Green Diffused 100° 110V 6mA Quick Connect - 0.110" (2.8mm)
