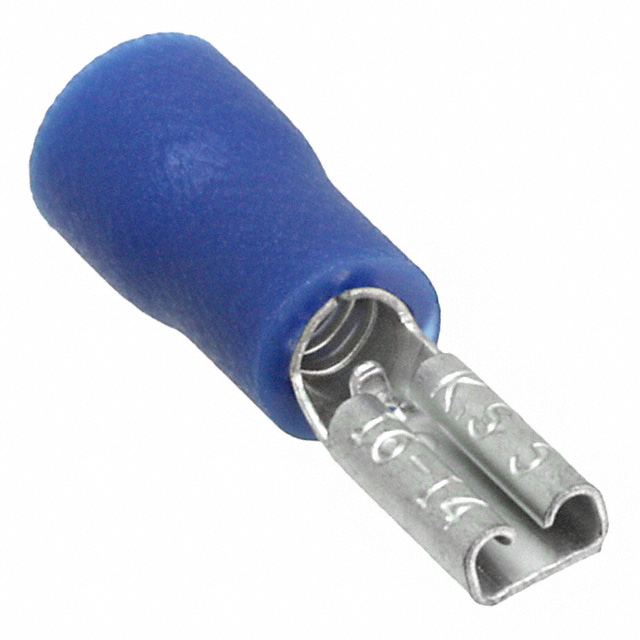

72F-110-20-P-A

Active

3M (TC)

16-14 AWG VINYL INSULATED BUTTED SEAM FEMALE

Search across all available documentation for this part.

Active

3M (TC)

16-14 AWG VINYL INSULATED BUTTED SEAM FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	72F-110-20-P-A

Color	Blue
Features	Butted Seam
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp

Part	Termination	Tab Thickness	Tab Thickness	Gender	Insulation	Color	Mounting Type	Tab Width	Tab Width	Insulation Diameter	Insulation Diameter [diameter]	Terminal Type	Features
3M (TC) 72F-110-20-P-A	Crimp	0.02 "	0.51 mm	Female	Non-Mating End Insulated	Blue	Free Hanging (In-Line)	2.79 mm	0.11 "	3.68 mm	0.145 "	Standard	Butted Seam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.110" (2.79mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated
