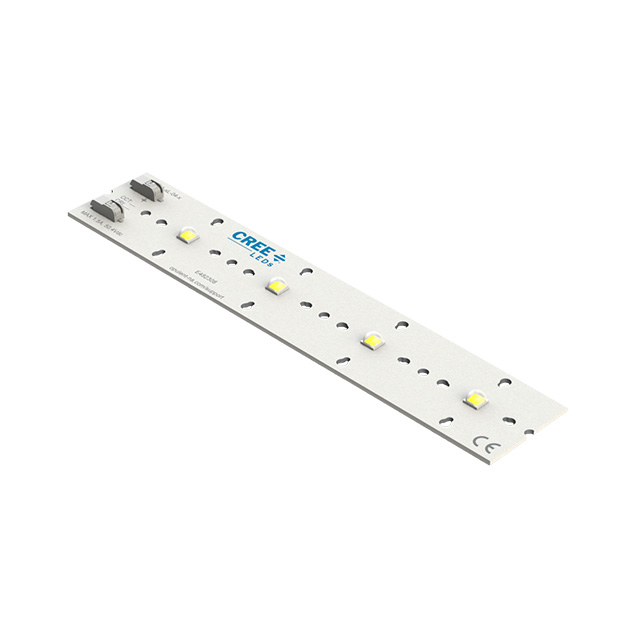

XHP50A-0L-04-0D0BJ440E
New Energy
LED MOD XHP50A WH LNR STRP 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XHP50A-0L-04-0D0BJ440E
New Energy
LED MOD XHP50A WH LNR STRP 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XHP50A-0L-04-0D0BJ440E | XHP50A Series |
|---|---|---|
| CCT (K) | 4000 K | 2700 - 5700 K |
| CCT (K) | - | 5-Step MacAdam Ellipse |
| Color | Neutral, White | Cool, White, Warm, Neutral |
| Configuration | Linear Light Strip | Starboard, Linear Light Strip, Square |
| CRI (Color Rendering Index) | 70 | 70 - 90 |
| Current - Max | - | 1.5 - 3 A |
| Current - Max [Max] | 1.5 A | 1.5 A |
| Current - Test | - | 1.4 - 700 A |
| Lens Type | Domed | Domed |
| Lumens/Watt @ Current - Test | 139 lm/W | 62 - 139 lm/W |
| Luminous Flux @ Current/Temperature | - | 900 - 4880 lm |
| Luminous Flux @ Current/Temperature | - | 1040 lm |
| Luminous Flux @ Current/Temperature | - | 970 lm |
| Size / Dimension | - | 19.89 mm |
| Size / Dimension [x] | 6.7 in | 5.2 - 93.98 in |
| Size / Dimension [y] | 1.3 in | 1.3 - 73.15 in |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Viewing Angle | - | 120 ° |
| Voltage - Forward (Vf) (Typ) | 46 V | 6 - 46 V |
XHP50A Series
LED MOD XLAMP WH STARBOARD 5000K
| Part | Type | Viewing Angle | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | Lens Type | Current - Test | Color | Current - Max | Temperature - Test | Luminous Flux @ Current/Temperature | CCT (K) | CCT (K) | Size / Dimension [diameter] | Lumens/Watt @ Current - Test | Configuration | Current - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy XHP50A-00-0000-0D0BJ450E-SB01 | LED Module | 120 ° | 6 V, 12 V | 70 | Domed | 1.4 A, 700 mA | Cool, White | 1.5 A, 3 A | 85 °C | 1160 lm | 5000 K | 5-Step MacAdam Ellipse | 19.89 mm | 72 lm/W | Starboard | |||||
New Energy XHP50A-0L-04-0D0BH430E | LED Module | 46 V | 70 | Domed | Warm, White | 85 °C | 3880 lm | 3000 K | 121 lm/W | Linear Light Strip | 1.5 A | 6.7 in | 1.3 in | |||||||
New Energy XHP50A-0S-01-0D0BJ440E | LED Module | 11.5 V | 70 | Domed | Neutral, White | 85 °C | 1120 lm | 4000 K | 139 lm/W | Square | 1.5 A | 36.83 mm | 36.83 mm | |||||||
New Energy XHP50A-0S-04-0D0BJ40E2 | LED Module | 46 V | 70 | Domed | Cool, White | 85 °C | 5700 K | 139 lm/W | Square | 1.5 A | 73.15 mm | 73.15 mm | ||||||||
New Energy XHP50A-0S-01-0D0BJ40E2 | LED Module | 11.5 V | 70 | Domed | Cool, White | 85 °C | 1120 lm | 5700 K | 139 lm/W | Square | 1.5 A | 36.83 mm | 36.83 mm | |||||||
New Energy XHP50A-0L-03-0D0HJ20E2 | LED Module | 80 | Domed | 85 °C | Linear Light Strip | |||||||||||||||
New Energy XHP50A-0L-02-0D0HH227G | LED Module | 23 V | 80 | Domed | Warm, White | 85 °C | 1800 lm | 2700 K | 112 lm/W | Linear Light Strip | 1.5 A | 93.98 mm | 1.3 in | |||||||
New Energy XHP50A-0L-04-0D0HH227G | LED Module | 46 V | 80 | Domed | Warm, White | 85 °C | 3600 lm | 2700 K | 112 lm/W | Linear Light Strip | 1.5 A | 6.7 in | 1.3 in | |||||||
New Energy XHP50A-0L-02-0D0BJ450E | LED Module | 23 V | 70 | Domed | Cool, White | 85 °C | 2240 lm | 5000 K | 5-Step MacAdam Ellipse | 139 lm/W | Linear Light Strip | 1.5 A | 93.98 mm | 1.3 in | ||||||
New Energy XHP50A-0S-04-0D0HJ250G | LED Module | 80 | Domed | 85 °C | Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 27.49 | |
Description
General part information
XHP50A Series
LED Lighting COBs Engines Modules LED Module XHP50A White, Neutral Linear Light Strip
