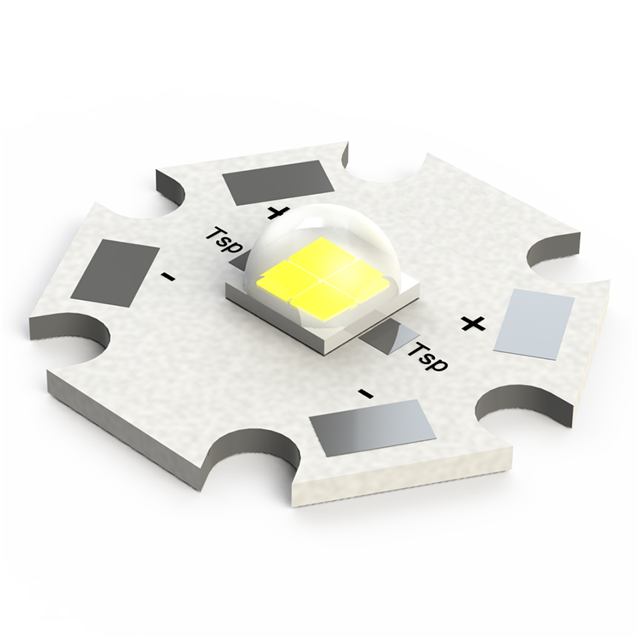

XHP50A-00-0000-0D0BJ450E-SB01

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP50A-00-0000-0D0BJ450E-SB01

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XHP50A-00-0000-0D0BJ450E-SB01	XHP50A Series

CCT (K)	5000 K	2700 - 5700 K
CCT (K)	5-Step MacAdam Ellipse	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White, Warm, Neutral
Configuration	Starboard	Starboard, Linear Light Strip, Square
CRI (Color Rendering Index)	70	70 - 90
Current - Max	1.5 A, 3 A	1.5 - 3 A
Current - Max	-	1.5 A
Current - Test	1.4 A, 700 mA	1.4 - 700 A
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	72 lm/W	62 - 139 lm/W
Luminous Flux @ Current/Temperature	1160 lm	900 - 4880 lm
Luminous Flux @ Current/Temperature	-	1040 lm
Luminous Flux @ Current/Temperature	-	970 lm
Size / Dimension	-	5.2 - 93.98 in
Size / Dimension	-	1.3 - 73.15 in
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V	6 - 46 V

XHP50A Series

LED MOD XLAMP WH STARBOARD 5000K

Part	Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Lens Type	Current - Test	Color	Current - Max	Temperature - Test	Luminous Flux @ Current/Temperature	CCT (K)	CCT (K)	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	Configuration	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]
New Energy XHP50A-00-0000-0D0BJ450E-SB01	LED Module	120 °	6 V, 12 V	70	Domed	1.4 A, 700 mA	Cool, White	1.5 A, 3 A	85 °C	1160 lm	5000 K	5-Step MacAdam Ellipse	19.89 mm	72 lm/W	Starboard
New Energy XHP50A-0L-04-0D0BH430E	LED Module		46 V	70	Domed		Warm, White		85 °C	3880 lm	3000 K			121 lm/W	Linear Light Strip	1.5 A	6.7 in	1.3 in
New Energy XHP50A-0S-01-0D0BJ440E	LED Module		11.5 V	70	Domed		Neutral, White		85 °C	1120 lm	4000 K			139 lm/W	Square	1.5 A	36.83 mm	36.83 mm
New Energy XHP50A-0S-04-0D0BJ40E2	LED Module		46 V	70	Domed		Cool, White		85 °C		5700 K			139 lm/W	Square	1.5 A	73.15 mm	73.15 mm
New Energy XHP50A-0S-01-0D0BJ40E2	LED Module		11.5 V	70	Domed		Cool, White		85 °C	1120 lm	5700 K			139 lm/W	Square	1.5 A	36.83 mm	36.83 mm
New Energy XHP50A-0L-03-0D0HJ20E2	LED Module			80	Domed				85 °C						Linear Light Strip
New Energy XHP50A-0L-02-0D0HH227G	LED Module		23 V	80	Domed		Warm, White		85 °C	1800 lm	2700 K			112 lm/W	Linear Light Strip	1.5 A	93.98 mm	1.3 in
New Energy XHP50A-0L-04-0D0HH227G	LED Module		46 V	80	Domed		Warm, White		85 °C	3600 lm	2700 K			112 lm/W	Linear Light Strip	1.5 A	6.7 in	1.3 in
New Energy XHP50A-0L-02-0D0BJ450E	LED Module		23 V	70	Domed		Cool, White		85 °C	2240 lm	5000 K	5-Step MacAdam Ellipse		139 lm/W	Linear Light Strip	1.5 A	93.98 mm	1.3 in
New Energy XHP50A-0S-04-0D0HJ250G	LED Module			80	Domed				85 °C						Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.75
		10	$ 14.49
		25	$ 12.92
		100	$ 11.55

Description

General part information

XHP50A Series

LED Lighting COBs Engines Modules LED Module Xlamp® XHP50 White, Cool Starboard

Documents

Technical documentation and resources
