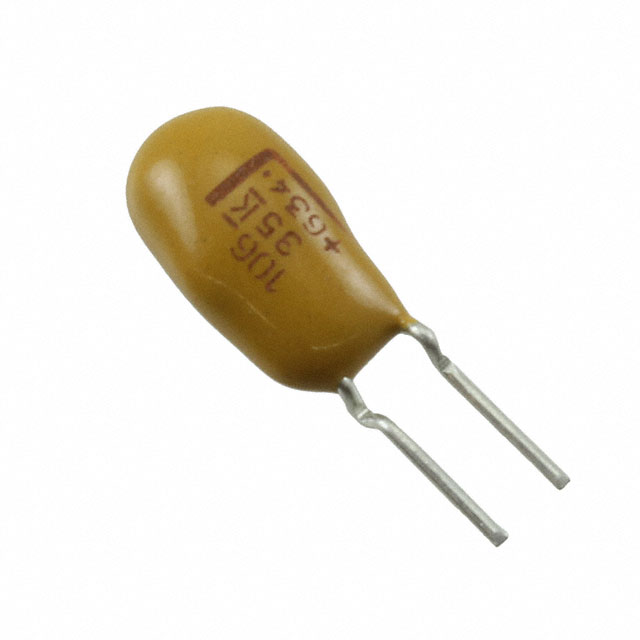

T353G106M035AS7301

Active

KEMET

CAP TANT 10UF 20% 35V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 10UF 20% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T353G106M035AS7301

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	G
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Manufacturer Size Code	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	Features	ESR (Equivalent Series Resistance)
KEMET T353G107M003AS	3 VDC	100 µF	-55 °C	125 °C	Radial	13 mm	0.512 "	0.248 in	6.3 mm	Conformal Coated	G	20 %	5.08 mm	0.2 in	Through Hole	General Purpose
KEMET T353G106M035AS7301	35 V	10 µF	-55 °C	125 °C	Radial	13 mm	0.512 "	0.248 in	6.3 mm	Conformal Coated	G	20 %	5.08 mm	0.2 in	Through Hole	General Purpose	2 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 4.22
