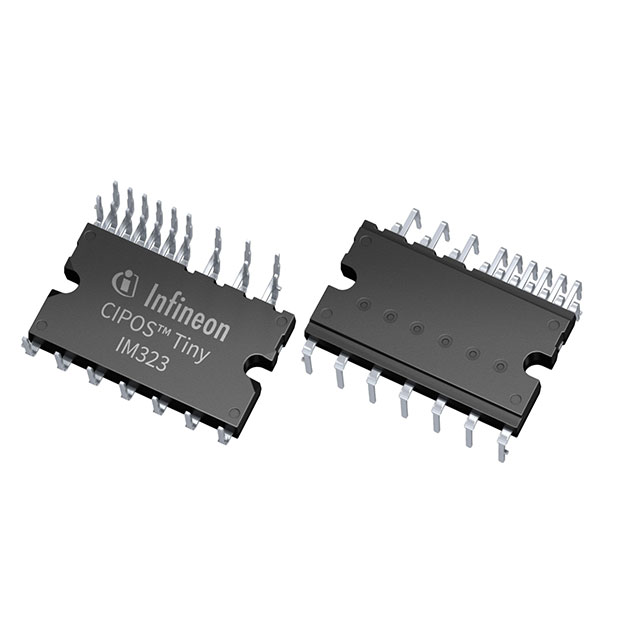

CIPOS™ Tiny600 V, 15 A three-phaseIGBTbasedIntelligent Power Modulein DIP 33x19 package with short lead length(5.7mm). The Tiny IM323 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motors and permanent magnet motors in variable speed drives for application like anair conditioningandwashing machine. The package concept is specially adapted to power application, which need good thermal conduction and electrical isolation, also EMI-save control and overload protection. The reverse conducting IGBTs are combined with an optimizedSOI gate driverfor excellent electrical performance.
