770969-1

Obsolete

TE Connectivity AMP Connectors

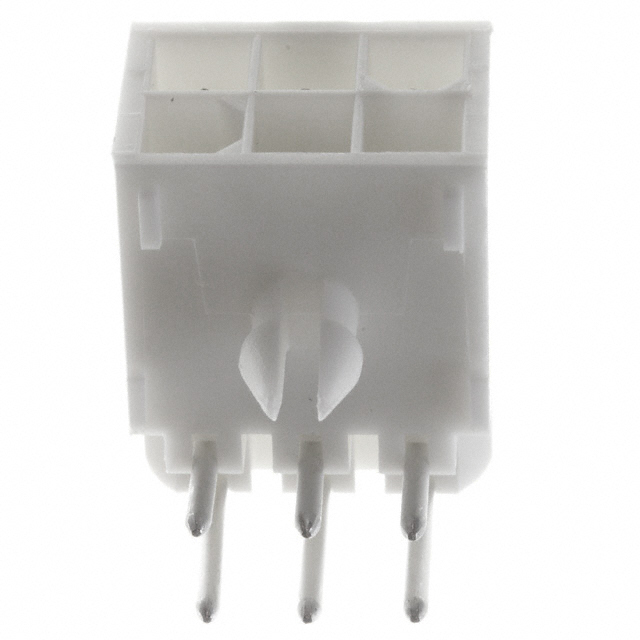

CONN HEADER R/A 6POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

770969-1

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770969-1	770969 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	150 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	3.81 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

770969 Series

CONN HEADER R/A 6POS 4.14MM

Part	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Shrouding	Style	Contact Shape	Contact Finish - Mating	Contact Finish - Post	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Insulation Color	Termination	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded
TE Connectivity AMP Connectors 770969-2	4.14 mm	0.163 in	Varies by Wire Gauge	Shrouded - 4 Wall	Board to Cable/Wire	Circular	Gold	Tin-Lead	600 VAC	Brass	9.8 mm	0.386 in	White	Solder	UL94 V-0	150 Áin	3.81 Ám	General Purpose	6	Header	30 Áin	0.76 Ám	Locking Ramp	2	Through Hole, Right Angle	-20 C	105 ░C	Nylon, Polyamide (PA)	4.14 mm	0.163 in	0.145 in	3.68 mm	Male Pin	All
TE Connectivity AMP Connectors 770969-1	4.14 mm	0.163 in	Varies by Wire Gauge	Shrouded - 4 Wall	Board to Cable/Wire	Circular	Tin-Lead	Tin-Lead	600 VAC	Brass	9.8 mm	0.386 in	White	Solder	UL94 V-0	150 Áin	3.81 Ám	General Purpose	6	Header	150 Áin	3.81 Ám	Locking Ramp	2	Through Hole, Right Angle	-20 C	85 °C	Nylon, Polyamide (PA)	4.14 mm	0.163 in	0.145 in	3.68 mm	Male Pin	All
TE Connectivity AMP Connectors 1-770969-0	4.14 mm	0.163 in	Varies by Wire Gauge	Shrouded - 4 Wall	Board to Cable/Wire	Circular		Tin	600 VAC	Brass	9.8 mm	0.386 in	White	Solder	UL94 V-0	150 Áin	3.81 Ám	General Purpose	6	Header	150 Áin	3.81 Ám	Locking Ramp	2	Through Hole, Right Angle	-20 C	85 °C	Nylon, Polyamide (PA)	4.14 mm	0.163 in	0.145 in	3.68 mm	Male Pin	All
