770969-2
ObsoleteTE Connectivity AMP Connectors

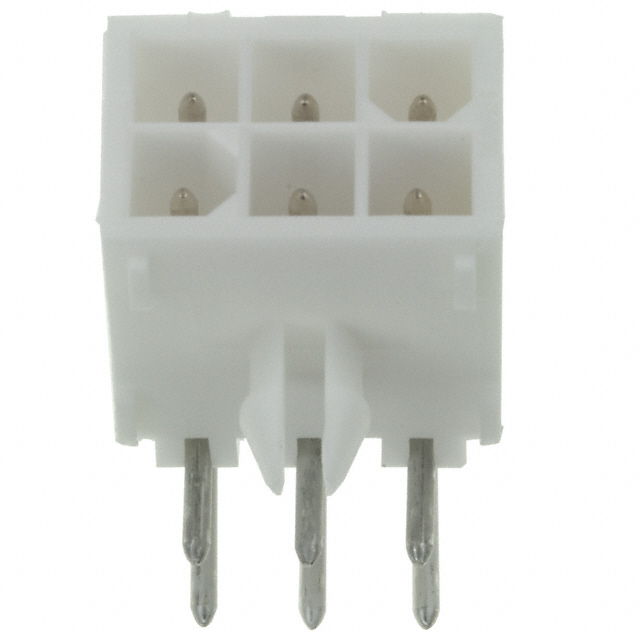

CONN HEADER R/A 6POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770969-2
ObsoleteTE Connectivity AMP Connectors
CONN HEADER R/A 6POS 4.14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770969-2 | 770969 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 - 150 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 - 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 0.145 in | 0.145 in |
| Contact Length - Post | 3.68 mm | 3.68 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | White | White |
| Insulation Height | 9.8 mm | 9.8 mm |
| Insulation Height | 0.386 in | 0.386 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 ░C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch - Mating | 4.14 mm | 4.14 mm |
| Pitch - Mating | 0.163 in | 0.163 in |
| Row Spacing - Mating | 4.14 mm | 4.14 mm |
| Row Spacing - Mating | 0.163 in | 0.163 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
770969 Series
CONN HEADER R/A 6POS 4.14MM
| Part | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Shrouding | Style | Contact Shape | Contact Finish - Mating | Contact Finish - Post | Voltage Rating | Contact Material | Insulation Height | Insulation Height | Insulation Color | Termination | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Number of Positions | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Contact Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770969-2 | 4.14 mm | 0.163 in | Varies by Wire Gauge | Shrouded - 4 Wall | Board to Cable/Wire | Circular | Gold | Tin-Lead | 600 VAC | Brass | 9.8 mm | 0.386 in | White | Solder | UL94 V-0 | 150 Áin | 3.81 Ám | General Purpose | 6 | Header | 30 Áin | 0.76 Ám | Locking Ramp | 2 | Through Hole, Right Angle | -20 C | 105 ░C | Nylon, Polyamide (PA) | 4.14 mm | 0.163 in | 0.145 in | 3.68 mm | Male Pin | All |
TE Connectivity AMP Connectors 770969-1 | 4.14 mm | 0.163 in | Varies by Wire Gauge | Shrouded - 4 Wall | Board to Cable/Wire | Circular | Tin-Lead | Tin-Lead | 600 VAC | Brass | 9.8 mm | 0.386 in | White | Solder | UL94 V-0 | 150 Áin | 3.81 Ám | General Purpose | 6 | Header | 150 Áin | 3.81 Ám | Locking Ramp | 2 | Through Hole, Right Angle | -20 C | 85 °C | Nylon, Polyamide (PA) | 4.14 mm | 0.163 in | 0.145 in | 3.68 mm | Male Pin | All |
TE Connectivity AMP Connectors 1-770969-0 | 4.14 mm | 0.163 in | Varies by Wire Gauge | Shrouded - 4 Wall | Board to Cable/Wire | Circular | Tin | 600 VAC | Brass | 9.8 mm | 0.386 in | White | Solder | UL94 V-0 | 150 Áin | 3.81 Ám | General Purpose | 6 | Header | 150 Áin | 3.81 Ám | Locking Ramp | 2 | Through Hole, Right Angle | -20 C | 85 °C | Nylon, Polyamide (PA) | 4.14 mm | 0.163 in | 0.145 in | 3.68 mm | Male Pin | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.91 | |
| 10 | $ 3.49 | |||
| 100 | $ 3.09 | |||
| 500 | $ 2.85 | |||
| 1000 | $ 2.54 | |||
Description
General part information
770969 Series
Connector Header Through Hole, Right Angle 6 position 0.163" (4.14mm)
