NDTS1205C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 3W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Efficiency	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications

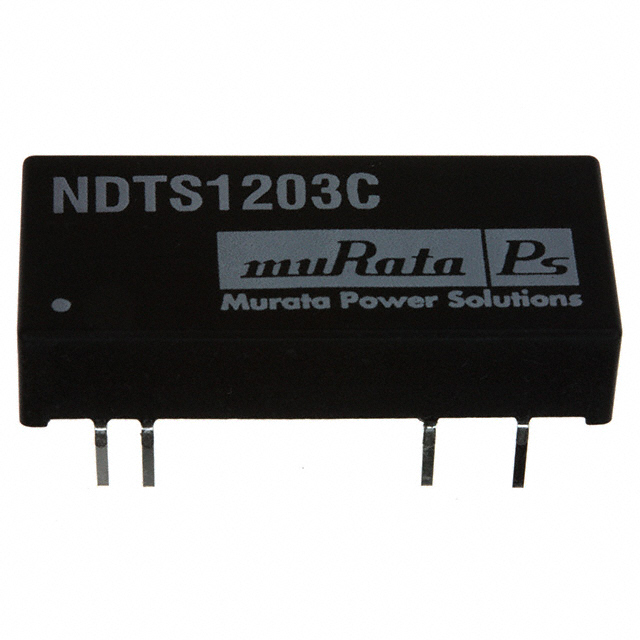

Murata Power Solutions Inc. NDTS1203C	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	71 %	18 V	3 W	3.3 V	Through Hole	909 mA	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1	9 V	1000 V	ITE (Commercial)
Murata Power Solutions Inc. NDTS1215C	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	76 %	18 V	3 W	15 V	Through Hole	200 mA	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1	9 V	1000 V	ITE (Commercial)
Murata Power Solutions Inc. NDTS1205C	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	73 %	18 V	3 W	5 V	Through Hole	600 mA	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1	9 V	1000 V	ITE (Commercial)
Murata Power Solutions Inc. NDTS1212C	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	75 %	18 V	3 W	12 V	Through Hole	250 mA	85 °C	-40 °C	24-DIP Module (600 mil, 8 Leads)	1	9 V	1000 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
