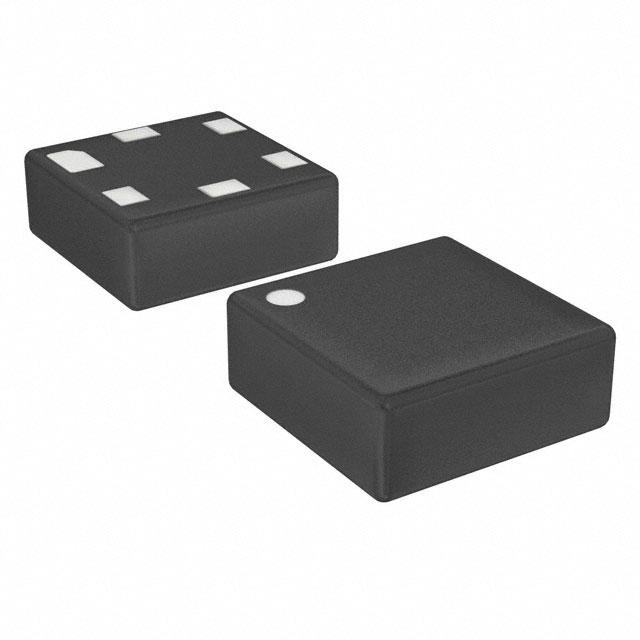

XM0860SR-DL0801

Obsolete

Murata Electronics

IC RF SWITCH SPDT 3GHZ 6QFN

Search across all available documentation for this part.

Obsolete

Murata Electronics

IC RF SWITCH SPDT 3GHZ 6QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC RF SWITCH DP4T 3GHZ 6QFN

Part	Test Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Isolation	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Supplier Device Package	Circuit	Insertion Loss	RF Type	Frequency Range [Min]	Frequency Range [Max]	Mounting Type
Murata Electronics XM0860SR-DL0812	2 GHz	85 °C	-40 °C	23 dB	1.7 V	4 V	6-XFQFN	6-QFN (1x1)	DP4T	0.6 dB	General Purpose	800 MHz	3 GHz
Murata Electronics XM0860SR-DL0801	2 GHz	85 °C	-40 °C	23 dB			6-XFQFN	6-QFN (1x1)	SPDT	0.6 dB		800 MHz	3 GHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Switch IC SPDT 3 GHz 6-QFN (1x1)

Technical documentation and resources

No documents available
