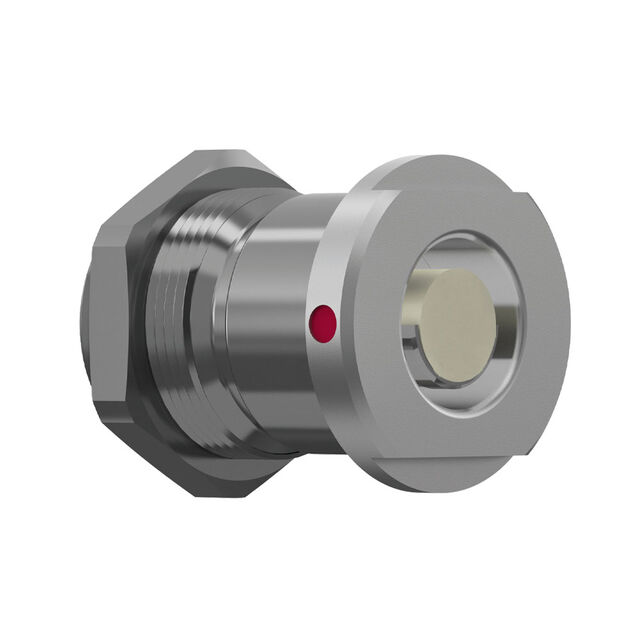

Specification	G21F1C-P05LJG0-0000

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	1 °
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	450 VAC

G21F1C-P Series

Part	Contact Finish - Mating	Connector Type	Shell Material	Primary Material	Mounting Feature	Insert Material	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Orientation Angle	Shell Size - Insert	Shell Size - Insert	Shell Finish	Material Flammability Rating	Mounting Type	Fastening Type	Shielding	Termination	Color	Applications	Current Rating	Contact Material	Number of Positions
ODU G21F1C-P12LCC0-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	366 V	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount	Push-Pull	Unshielded	Solder Cup	Silver	Industrial Medical Military Testing Equipment & Measurement	4 A	Brass	12
ODU G21F1C-P02QP00-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	550 V	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount Through Hole	Push-Pull	Unshielded	Solder	Silver	Industrial Medical Military Testing Equipment & Measurement	12 A	Brass	2
ODU G21F1C-P03MPH0-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	500 V	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount	Push-Pull	Unshielded	Solder Cup	Silver	Industrial Medical Military Testing Equipment & Measurement	12 A	Brass	3
ODU G21F1C-P05LJG0-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	450 VAC	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount	Push-Pull	Unshielded	Solder Cup	Silver	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	5
ODU G21F1C-P07LFG0-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	333 V	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount	Push-Pull	Unshielded	Solder Cup	Silver	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	7
ODU G21F1C-P06LFG0-0000	Gold	Female Sockets Receptacle	Brass	Metal	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	IP68	Dust Tight Waterproof	120 °C	-40 °C	333 V	1 °	1	1	Chrome Nickel	UL94 V-0	Panel Mount	Push-Pull	Unshielded	Solder Cup	Silver	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Brass	6
