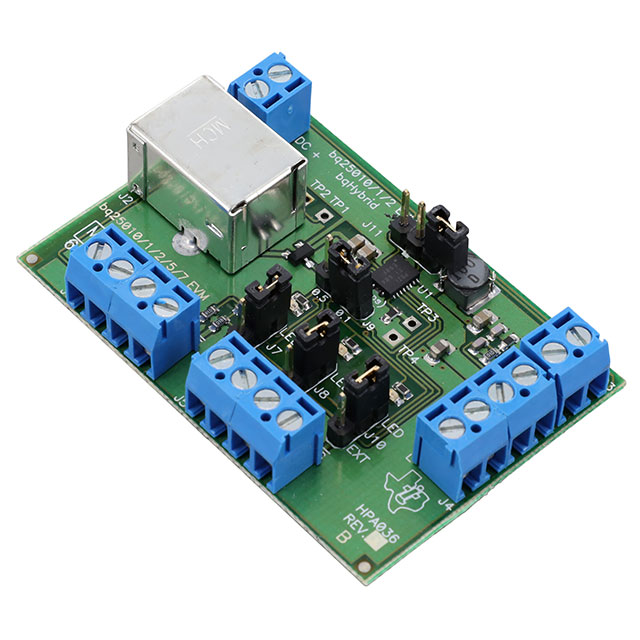

BQ25015EVM
ActiveBQ25015EVM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25015EVM | BQ25015 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 500 mA |
| Current - Charging | - | Constant - Programmable |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-VQFN (3.5x4.5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25015 | BQ25015 |
| Voltage - Supply (Max) | - | 6.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 61.25 | |
| Digikey | Box | 1 | $ 58.80 | |
| Mouser Electronics | N/A | 1 | $ 61.24 | |
BQ25015 Series
Standalone 1-cell, 0.5-A Li-ion battery charger w/ synchronous buck converter,output adjustable
| Part | Charge Current - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Battery Pack Voltage | Package / Case | Number of Cells | Interface | Battery Chemistry | Voltage - Supply (Max) [Max] | Supplier Device Package | Current - Charging | Function | Utilized IC / Part | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25015RHLTG4 | 500 mA | -40 °C | 125 °C | Surface Mount | 4.2 V | 20-VFQFN Exposed Pad | 1 | USB | Lithium Ion/Polymer | 6.5 V | 20-VQFN (3.5x4.5) | Constant - Programmable | ||||
Texas Instruments BQ25015EVM | Battery Charger | BQ25015 | Board(s) | Power Management | ||||||||||||
Texas Instruments BQ25015RHLT | 500 mA | -40 °C | 125 °C | Surface Mount | 4.2 V | 20-VFQFN Exposed Pad | 1 | USB | Lithium Ion/Polymer | 6.5 V | 20-VQFN (3.5x4.5) | Constant - Programmable |
Description
General part information
BQ25015 Series
The bq25015/7 are highly integrated charge and power management devices targeted at space-limited bluetooth applications. The bq25015/7 devices offer integrated power FET and current sensor for charge control, reverse blocking protection, high accuracy current and voltage regulation, charge status, charge termination, and a highly efficient and low-power dc-dc converter in a small package.
The bq25015/7 devices charge the battery in three phases: conditioning, constant current and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety feature for charge termination. The bq25015/7 automatically re-starts the charge if the battery voltage falls below an internal threshold. The bq25015/7 automatically enters sleep mode when VCCsupply is removed.
The integrated low-power high-efficiency dc-dc converter is designed to operate directly from a single-cell Li-ion or Li-Pol battery pack. The output voltage is either adjustable from 0.7 V to VBAT, or fixed at 1.8 V (bq25017) and is capable of delivering up to 300-mA of load current. The dc-dc converter operates at a synchronized 1 MHz switching frequency allowing for the use of small inductors.
