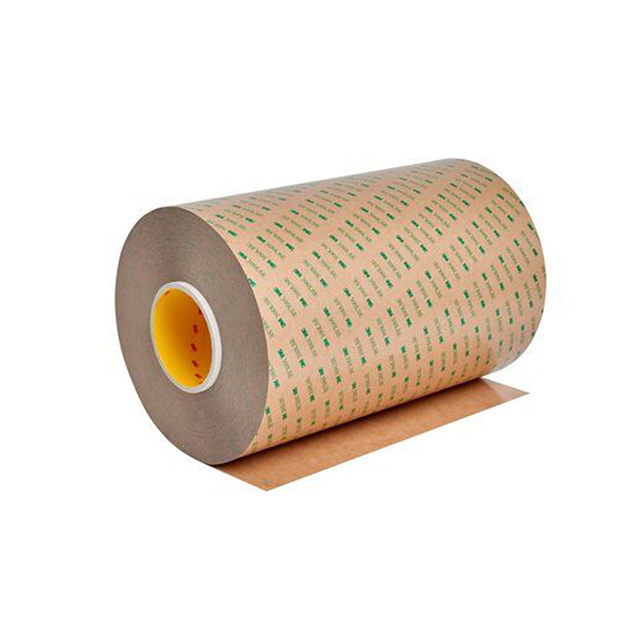

9471LE-24"X180YD

Active

3M (TC)

TAPE ADHESIVE TRANSFER 24"X180YD

Search across all available documentation for this part.

Active

3M (TC)

TAPE ADHESIVE TRANSFER 24"X180YD

Technical Specifications

Parameters and characteristics for this part

Specification	9471LE-24"X180YD

Adhesive	Acrylic, 300LSE
Backing, Carrier	Polycoated Kraft Liner
Length	540 ft
Length	180 yds
Length	164.6 m
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Thickness	6.3 mils
Thickness	0.0063 "
Thickness	0.16 mm
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.102 mm
Thickness - Backing, Carrier	4 mils
Thickness - Backing, Carrier	0.004 in
Usage	Bonding
Width [x]	609.6 mm
Width [x]	24 in

Part	Width [y]	Width [y]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Shelf Life	Length	Length	Length	Tape Type	Thickness	Thickness	Thickness	Shelf Life Start	Backing, Carrier	Usage	Width [x]	Width [x]	Width
3M (TC) 9471LE-2"X60YD	2 "	50.8 mm	0.0023 "	2.3 mils	0.058 mm	70 °F	21 °C	0.102 mm	4 mils	0.004 in	Acrylic 300LSE	24 Months	60 yds	55 m	180 ft	Adhesive Transfer	6.3 mils	0.0063 "	0.16 mm	Date of Manufacture	Polycoated Kraft Liner	Bonding
3M (TC) 9471LE-54"X60YD	54 in	1.37 m	0.0023 "	2.3 mils	0.058 mm	70 °F	21 °C	0.102 mm	4 mils	0.004 in	Acrylic 300LSE	24 Months	60 yds	55 m	180 ft	Adhesive Transfer	6.3 mils	0.0063 "	0.16 mm	Date of Manufacture	Polycoated Kraft Liner	Bonding
3M (TC) 9471LE-24"X180YD			0.0023 "	2.3 mils	0.058 mm	70 °F	21 °C	0.102 mm	4 mils	0.004 in	Acrylic 300LSE	24 Months	180 yds	164.6 m	540 ft	Adhesive Transfer	6.3 mils	0.0063 "	0.16 mm	Date of Manufacture	Polycoated Kraft Liner	Bonding	609.6 mm	24 in
3M (TC) 9471LE-48"X60YD			0.0023 "	2.3 mils	0.058 mm	70 °F	21 °C	0.102 mm	4 mils	0.004 in	Acrylic 300LSE	24 Months	60 yds	55 m	180 ft	Adhesive Transfer	6.3 mils	0.0063 "	0.16 mm	Date of Manufacture	Polycoated Kraft Liner	Bonding		48 "	1.22 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1398.17

General part information

Adhesive Transfer Tape Acrylic, 300LSE Adhesive 24.00" (609.60mm) X 540' (164.6m) 180 yds
