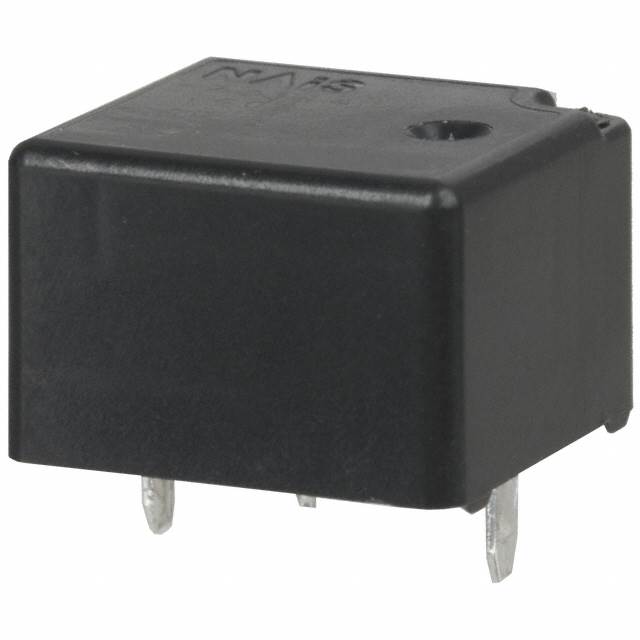

CP1AH-N-12V
ActivePanasonic Electric Works
CP POWER RELAY 1 FORM A 12V
Deep-Dive with AI
Search across all available documentation for this part.
CP1AH-N-12V
ActivePanasonic Electric Works
CP POWER RELAY 1 FORM A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CP1AH-N-12V |
|---|---|
| Coil Current | 53.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 20 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.21 | |
| 10 | $ 3.94 | |||
| 40 | $ 3.33 | |||
| 80 | $ 3.16 | |||
| 280 | $ 2.81 | |||
| 520 | $ 2.63 | |||
| 1000 | $ 2.45 | |||
Description
General part information
CP1A Series
CP POWER RELAY 1 FORM A 12V
