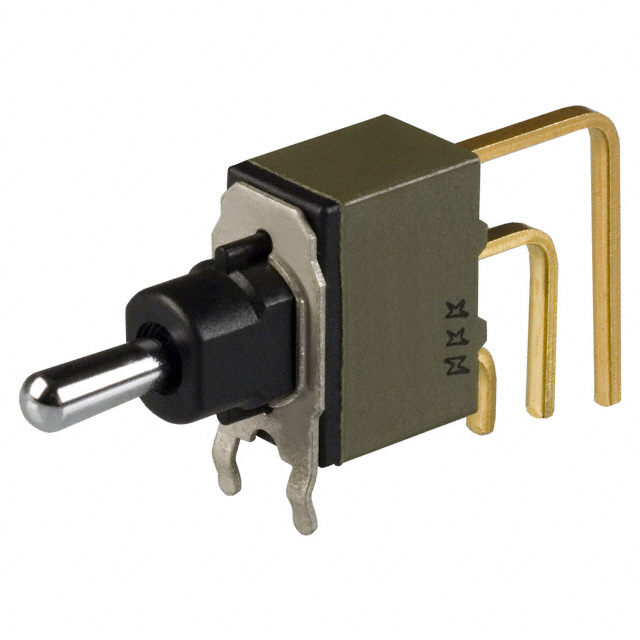

M2T13S4A5G40

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2T13S4A5G40

Actuator Length [x]	7.62 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Electrical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Current Rating (Amps)	Illumination	Circuit	Mounting Type	Termination Style	Actuator Type	Features	Actuator Material	Voltage Rating - AC	Bushing Thread	Actuator Length [x]
NKK Switches M2T13S4A5G40	50000 Cycles	28 V	-30 ░C	85 °C	On-Off-On	0.4 VA	Non-Illuminated	SPDT	Right Angle Through Hole Vertical	PC Pin	Standard Round	Process Sealed	Brass Nickel Plated	28 V	Unthreaded	7.62 mm
NKK Switches M2T13S4A5W03	25000 Steps	30 V	-30 ░C	85 °C	On-Off-On	3 A 6 A	Non-Illuminated	SPDT	Through Hole	PC Pin	Standard Round	Process Sealed	Brass Nickel Plated	125 V	Unthreaded	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
