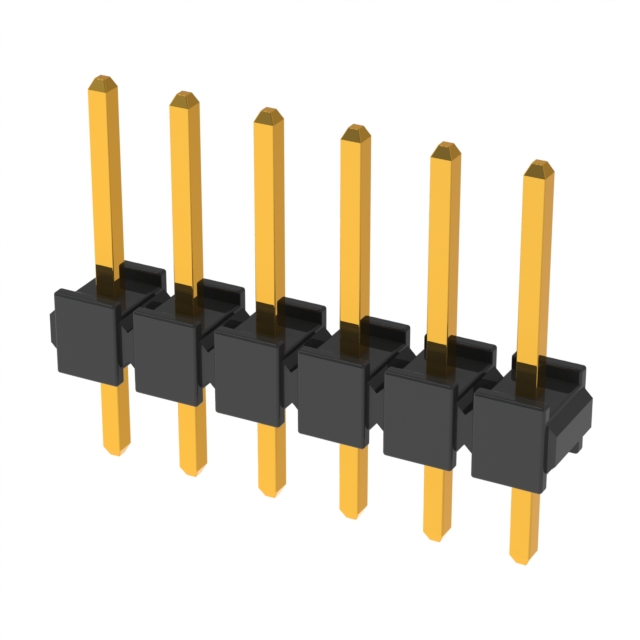

XG8S-0631

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG8S-0631

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XG8S-0631	XG8S Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold, Tin
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Length - Mating [x]	4.3 mm	4.3 mm
Contact Length - Mating [x]	0.169 in	0.169 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	9.8 mm	9.8 mm
Overall Contact Length	0.386 in	0.386 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XG8S Series

CONN HEADER VERT 3POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Rows	Contact Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Mounting Type	Voltage Rating	Style	Number of Positions
Omron Electronics Inc-EMC Div XG8S-0331	0.1 in	2.54 mm	Unshrouded	Gold	4.3 mm	0.169 in	All	9.8 mm	0.386 in	Black	Polybutylene Terephthalate (PBT), Glass Filled	0.15 µm	5.9 µin	Square	Push-Pull	0.098 in	2.5 mm	Male Pin	0.15 µm	5.9 µin	Header	2 A	105 ░C	-55 °C	UL94 V-0	1	Brass, Nickel	0.118 in	3 mm	Gold	Solder	Through Hole	300 VDC	Board to Board, Cable
Omron Electronics Inc-EMC Div XG8S-0241	0.1 in	2.54 mm	Unshrouded		4.3 mm	0.169 in	All	9.8 mm	0.386 in	Black	Polybutylene Terephthalate (PBT), Glass Filled			Square	Push-Pull	0.098 in	2.5 mm	Male Pin			Header	2 A	105 ░C	-55 °C	UL94 V-0	1	Brass, Nickel	0.118 in	3 mm	Tin	Solder	Through Hole	300 VDC	Board to Board, Cable	2
Omron Electronics Inc-EMC Div XG8S-0631	0.1 in	2.54 mm	Unshrouded	Gold	4.3 mm	0.169 in	All	9.8 mm	0.386 in	Black	Polybutylene Terephthalate (PBT), Glass Filled	0.15 µm	5.9 µin	Square	Push-Pull	0.098 in	2.5 mm	Male Pin	0.15 µm	5.9 µin	Header	2 A	105 ░C	-55 °C	UL94 V-0	1	Brass, Nickel	0.118 in	3 mm	Gold	Solder	Through Hole	300 VDC	Board to Board, Cable	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.42
		100	$ 0.36
		500	$ 0.29
		1000	$ 0.25
		5000	$ 0.22
		10000	$ 0.21
