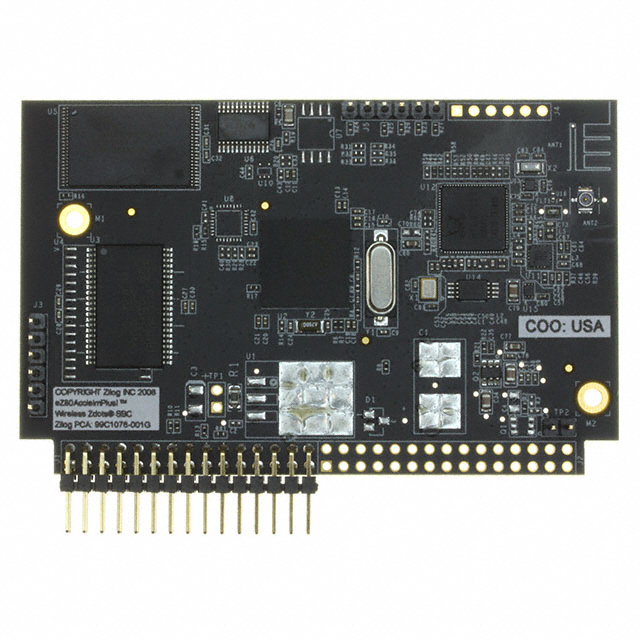

EZ80F91WF01SBCG

Active

Zilog

RF TXRX MOD WIFI CONNECTOR MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentseZ80F91 Wireless Zdots SBC Datasheet

EZ80F91WF01SBCG

Active

Zilog

RF TXRX MOD WIFI CONNECTOR MOUNT

Deep-Dive with AI

DocumentseZ80F91 Wireless Zdots SBC Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ80F91WF01SBCG	EZ80F91 Series

Connectivity	-	Ethernet, I2C, IrDA, SPI, UART/USART, Ethernet MAC, EBI/EMI
Core Processor	-	eZ80
Core Size	-	8-Bit
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	16 kB	16 kB
Memory Size [custom]	256 kB	256 kB
Mounting Type	Connector Mount	Surface Mount, Connector Mount
Number of I/O	-	32
Operating Temperature [Max]	70 °C	70 - 105 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Oscillator Type	-	Internal
Package / Case	PCB Module	144-LQFP, PCB Module, 144-LBGA
Program Memory Size	-	256 KB
Program Memory Type	-	FLASH
Protocol	802.11b/g	802.11b/g
RAM Size	-	8 - 16 K
RF Family/Standard	WiFi	WiFi
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Speed	-	50 MHz
Supplier Device Package	-	144-LQFP (20x20), 144-BGA (13x13)
Utilized IC / Part	EM3585	EM3585
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

EZ80F91 Series

IC MCU 8BIT 256KB FLASH 144LQFP

Part	Connectivity	Core Processor	Package / Case	Program Memory Size	RAM Size	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Speed	Core Size	Program Memory Type	Oscillator Type	Serial Interfaces	Protocol	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size [custom]	Memory Size [custom]	Frequency	RF Family/Standard
Zilog EZ80F91AZ050SC	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	16 K	144-LQFP (20x20)	Surface Mount	70 °C	0 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91AZA50SK	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	8 K	144-LQFP (20x20)	Surface Mount	70 °C	0 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91AZA50EG	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	16 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91GAZ0CEG	EBI/EMI, Ethernet MAC, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	16 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91GAZ0AEK	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	8 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91AZ050EC	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	16 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91AZ050SG	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	16 K	144-LQFP (20x20)	Surface Mount	70 °C	0 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91GAZ0BEK	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	8 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91GAZ0CEK	Ethernet, I2C, IrDA, SPI, UART/USART	eZ80	144-LQFP	256 KB	8 K	144-LQFP (20x20)	Surface Mount	105 °C	-40 °C	32	50 MHz	8-Bit	FLASH	Internal
Zilog EZ80F91WF01SBCG			PCB Module				Connector Mount	70 °C	0 °C						I2C, SPI, UART	802.11b/g	EM3585	3.6 V	3 V	16 kB	256 kB	2.4 GHz	WiFi

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EZ80F91 Series

WiFi 802.11b/g Transceiver Module 2.4GHz Connector Mount

Documents

Technical documentation and resources

eZ80F91 Wireless Zdots SBC

Datasheet
