S200-3-01-100HN

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.17/0.2"

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.17/0.2"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S200-3-01-100HN	S200 Series

Color	Transparent - Blue	Transparent - Blue
Diameter	4.32 mm, 5.08 mm	4.32 - 5.08 mm
Diameter	0.17 in, 0.2 in	0.17 - 0.2 in
Diameter	-	0.105 - 0.145 in
Diameter	-	2.67 - 3.68 mm
Features	Environment Resistant, Pre-Installed Braid	Environment Resistant, Pre-Installed Braid, Immersion Resistant, Pre-Installed Lead Wire
Length	16.51 mm	16.51 mm
Length	0.65 "	0.65 "
Length	-	0.65 in
Length	-	16.5 mm
Type	Wire to Wire	Wire to Wire

SLDR SLEEVE WIRE-WIRE 0.17/0.2"

Part	Diameter	Diameter	Color	Type	Features	Length	Length	Length [x]	Length [x]	Diameter [diameter]	Diameter [diameter]
TE Connectivity Aerospace, Defense and Marine S200-3-01-100HN	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Transparent - Blue	Wire to Wire	Environment Resistant, Pre-Installed Braid	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S200-2-00			Transparent - Blue	Wire to Wire	Environment Resistant, Immersion Resistant			0.65 in	16.5 mm	0.105 ", 0.145 in	2.67 mm, 3.68 mm
TE Connectivity Aerospace, Defense and Marine S200-2-W1-22-9			Transparent - Blue	Wire to Wire	Pre-Installed Lead Wire	16.51 mm	0.65 "			0.105 ", 0.145 in	2.67 mm, 3.68 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

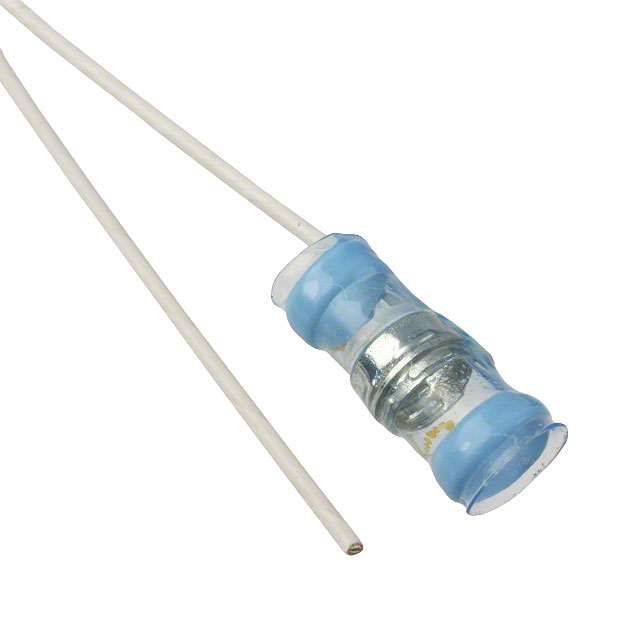

Wire to Wire Solder Sleeve Transparent - Blue 0.170" (4.32mm), 0.200" (5.08mm)

Technical documentation and resources

No documents available
