140717-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140717-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140717-1 | 140717 Series |
|---|---|---|
| Contact Finish | - | Tin |
| Contact Material | Brass | Brass |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 0.098 " | 0.098 " |
| Insulation Diameter [Max] [diameter] | 2.5 mm | 2.5 mm |
| Insulation Diameter [Min] [diameter] | 1.5 mm | 1.5 mm |
| Insulation Diameter [Min] [diameter] | 0.059 " | 0.059 " |
| Length - Overall | - | 0.633 in |
| Length - Overall | - | 16.08 mm |
| Length - Overall [x] | 0.634 in | 0.634 in |
| Length - Overall [x] | 16.1 mm | 16.1 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | 5.33 mm | 5.33 - 6.35 mm |
| Tab Length | 0.21 in | 0.21 - 0.25 in |
| Tab Thickness | 0.02 " | 0.02 " |
| Tab Thickness | 0.51 mm | 0.51 mm |
| Tab Width | 2.79 mm | 2.79 mm |
| Tab Width | 0.11 " | 0.11 " |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
140717 Series
CONN QC RCPT 18-22AWG 0.110
| Part | Tab Length | Tab Length | Terminal Type | Mounting Type | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness | Contact Material | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Contact Finish | Length - Overall | Length - Overall | Gender | Tab Width | Tab Width | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 140717-2 | 6.35 mm | 0.25 in | Standard | Free Hanging (In-Line) | Non-Insulated | 22 AWG | 17.5 AWG | 0.02 " | 0.51 mm | Brass | Crimp | 1.5 mm | 0.059 " | 0.098 " | 2.5 mm | Tin | 0.633 in | 16.08 mm | Female | 2.79 mm | 0.11 " | ||
TE Connectivity AMP Connectors 140717-1 | 5.33 mm | 0.21 in | Standard | Free Hanging (In-Line) | Non-Insulated | 22 AWG | 17.5 AWG | 0.02 " | 0.51 mm | Brass | Crimp | 1.5 mm | 0.059 " | 0.098 " | 2.5 mm | Female | 2.79 mm | 0.11 " | 0.634 in | 16.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.12 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.04 | |||
Description
General part information
140717 Series

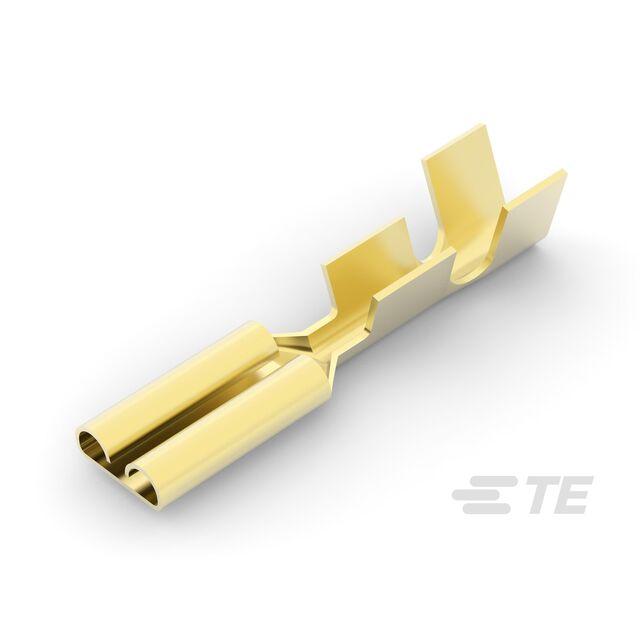

0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
