140717-2

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-22AWG 0.110

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-22AWG 0.110

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140717-2	140717 Series

Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	0.098 "	0.098 "
Insulation Diameter [Max] [diameter]	2.5 mm	2.5 mm
Insulation Diameter [Min] [diameter]	1.5 mm	1.5 mm
Insulation Diameter [Min] [diameter]	0.059 "	0.059 "
Length - Overall	0.633 in	0.633 in
Length - Overall	16.08 mm	16.08 mm
Length - Overall	-	0.634 in
Length - Overall	-	16.1 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	6.35 mm	5.33 - 6.35 mm
Tab Length	0.25 in	0.21 - 0.25 in
Tab Thickness	0.02 "	0.02 "
Tab Thickness	0.51 mm	0.51 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

CONN QC RCPT 18-22AWG 0.110

Part	Tab Length	Tab Length	Terminal Type	Mounting Type	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Contact Material	Termination	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Contact Finish	Length - Overall	Length - Overall	Gender	Tab Width	Tab Width	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 140717-2	6.35 mm	0.25 in	Standard	Free Hanging (In-Line)	Non-Insulated	22 AWG	17.5 AWG	0.02 "	0.51 mm	Brass	Crimp	1.5 mm	0.059 "	0.098 "	2.5 mm	Tin	0.633 in	16.08 mm	Female	2.79 mm	0.11 "
TE Connectivity AMP Connectors 140717-1	5.33 mm	0.21 in	Standard	Free Hanging (In-Line)	Non-Insulated	22 AWG	17.5 AWG	0.02 "	0.51 mm	Brass	Crimp	1.5 mm	0.059 "	0.098 "	2.5 mm				Female	2.79 mm	0.11 "	0.634 in	16.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

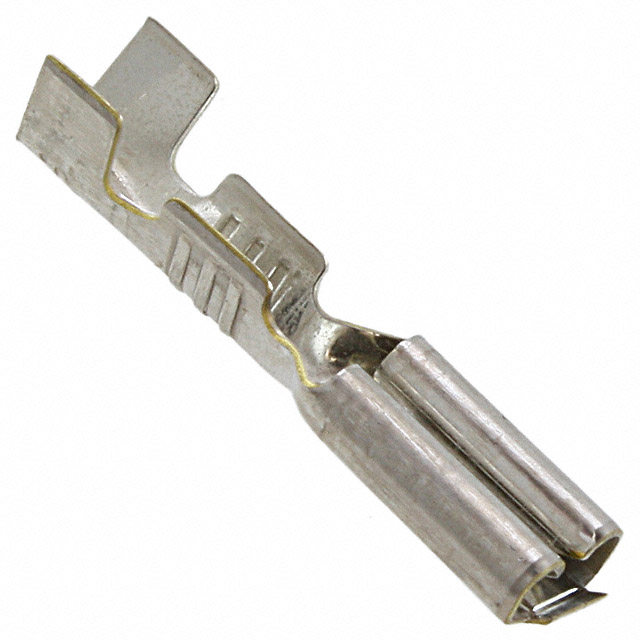

0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
