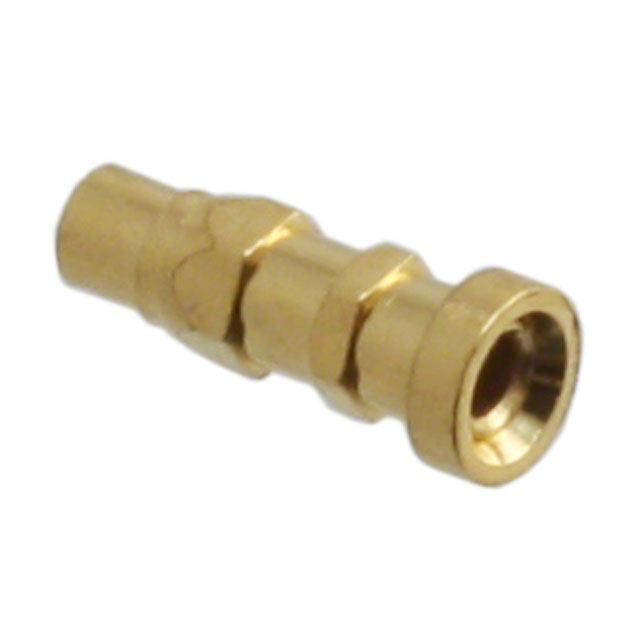

0560-0-15-15-11-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 HEX

Deep-Dive with AI

Search across all available documentation for this part.

0560-0-15-15-11-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 HEX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0560-0-15-15-11-27-10-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	0.14 "
Length - Overall [x]	3.56 mm
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	0.14 in
Socket Depth	3.56 mm
Tail Type	No Tail
Termination	Press-Fit, Hex

0560-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Type
Mill-Max Manufacturing Corp. 0560-0-15-01-11-14-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Gold	0.79 mm	0.031 in	10 Áin	0.25 Ám	1.09 mm	0.043 in	Press-Fit Hex	No Tail
Mill-Max Manufacturing Corp. 0560-0-15-15-11-14-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Gold	0.79 mm	0.031 in	10 Áin	0.25 Ám	1.09 mm	0.043 in	Press-Fit Hex	No Tail
Mill-Max Manufacturing Corp. 0560-0-15-15-11-27-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Gold	0.79 mm	0.031 in	30 Áin	0.76 Ám	1.09 mm	0.043 in	Press-Fit Hex	No Tail
Mill-Max Manufacturing Corp. 0560-0-15-80-11-84-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Tin	0.79 mm	0.031 in	100 µin	2.54 µm	1.09 mm	0.043 in	Press-Fit Hex	No Tail
Mill-Max Manufacturing Corp. 0560-0-15-80-11-14-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Gold	0.79 mm	0.031 in	10 Áin	0.25 Ám	1.09 mm	0.043 in	Press-Fit Hex	No Tail
Mill-Max Manufacturing Corp. 0560-0-15-01-11-02-10-0	0.14 "	3.56 mm	Beryllium Copper	1.4 mm	0.055 in	-55 °C	125 °C	0.14 in	3.56 mm	0.015 "	0.51 mm	0.02 "	0.38 mm	Tin-Lead	0.79 mm	0.031 in	100 µin	2.54 µm	1.09 mm	0.043 in	Press-Fit Hex	No Tail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.36
		10	$ 0.31
		25	$ 0.27
		50	$ 0.25
		100	$ 0.24
		250	$ 0.22
		500	$ 0.21
		1000	$ 0.17
		3000	$ 0.16

Description

General part information

0560-0 Series

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex

Documents

Technical documentation and resources

No documents available
