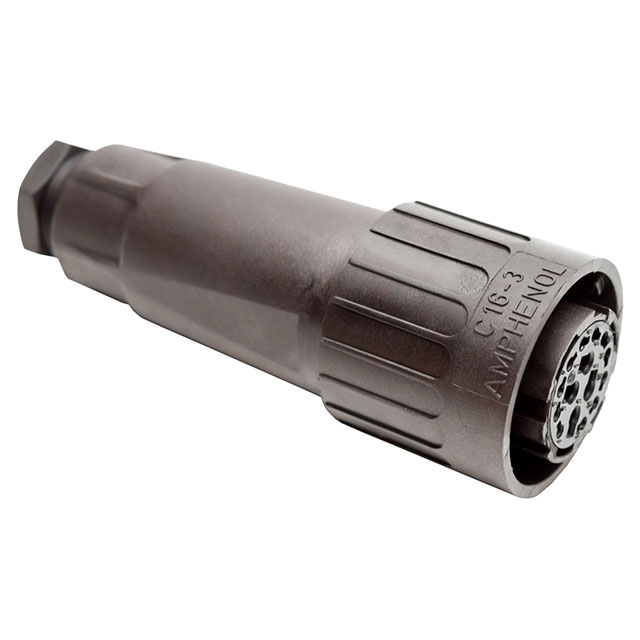

C01610E0140021

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 15POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 15POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C01610E0140021	C01610E014 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	1.5 mm, 2.5 mm	1.5 - 2.5 mm
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	15
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1	1
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLUG HSG FMALE 15POS INLINE

Part	Contact Size	Type	Shell Size - Insert	Housing Color	Contact Shape	Note	Shell Material	Orientation	Connector Type	Fastening Type	Mounting Type	Contact Type	Ingress Protection	Number of Positions	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Includes
Amphenol Tuchel Industrial C01610E0140031	1.5 mm, 2.5 mm	For Female Sockets	1	Black	Circular	Contacts Not Included	Polyamide (PA66), Nylon 6/6	N	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	Crimp	IP65 - Dust Tight, Water Resistant	15	Backshell, Cable Clamp, Coupling Nut	UL94 V-0	125 °C	-40 °C	Unshielded	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws
Amphenol Tuchel Industrial C01610E0140021	1.5 mm, 2.5 mm	For Female Sockets	1	Black	Circular	Contacts Not Included	Polyamide (PA66), Nylon 6/6	N	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	Crimp	IP65 - Dust Tight, Water Resistant	15	Backshell, Cable Clamp, Coupling Nut	UL94 V-0	125 °C	-40 °C	Unshielded	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
