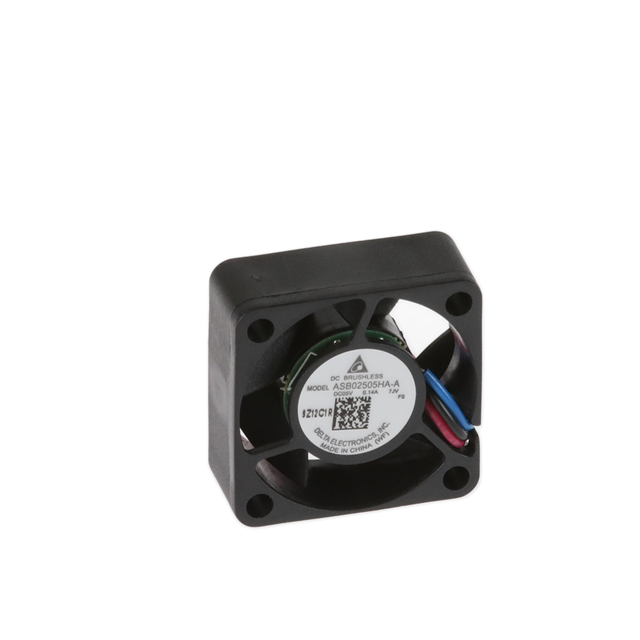

ASB02505HA-A7JV
Delta Electronics
DC FAN AXIAL SLEEVE BEARING 5V 4V TO 5.5V 2.18CFM 18DB 25 X 25 X 10MM
Deep-Dive with AI
Search across all available documentation for this part.
ASB02505HA-A7JV
Delta Electronics
DC FAN AXIAL SLEEVE BEARING 5V 4V TO 5.5V 2.18CFM 18DB 25 X 25 X 10MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASB02505HA-A7JV |
|---|---|
| Air Flow | 2.2 CFM |
| Air Flow | 0.061 m³/min |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 0.09 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 18 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 450 mW |
| RPM | 9000 RPM |
| Size / Dimension [x] | 25 mm |
| Size / Dimension [z] | 25 mm |
| Static Pressure | 0.114 in H2O |
| Static Pressure | 28.4 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 4 VDC |
| Weight | 0.014 lb |
| Weight | 6.35 g |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.92 | |
| 10 | $ 8.18 | |||
| 25 | $ 7.43 | |||
| 50 | $ 6.88 | |||
| 100 | $ 6.13 | |||
| 250 | $ 5.85 | |||
| 500 | $ 5.48 | |||
Description
General part information
ASB02505 Series
Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sleeve 2.2 CFM (0.061m³/min) 3 Wire Leads
