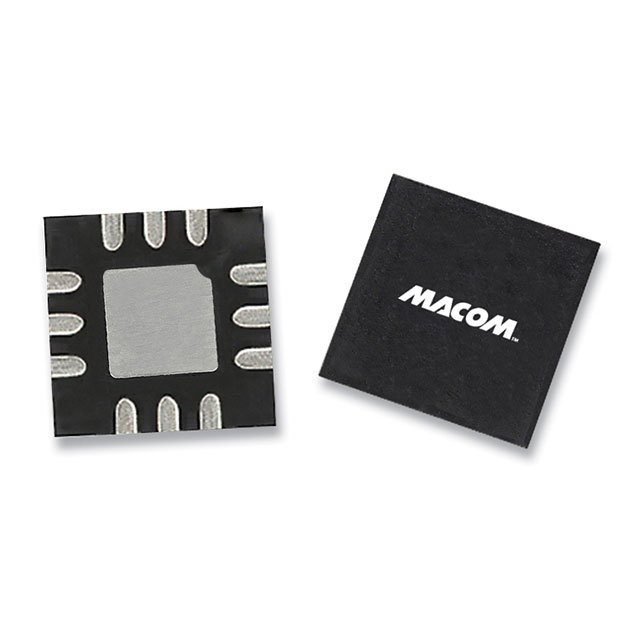

MASW-009482-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 4GHZ 12STQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-009482-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 4GHZ 12STQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-009482-TR3000 |
|---|---|
| Circuit | SP3T |
| IIP3 | 64 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.75 dB |
| Isolation | 20 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 36 dBm |
| Package / Case | 12-UFQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 12-STQFN (2x2) |
| Test Frequency | 2.5 GHz |
| Voltage - Supply [Max] | 2.7 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.82 | |
| 10 | $ 2.51 | |||
| 25 | $ 2.17 | |||
| 100 | $ 1.79 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.49 | |||
| 1000 | $ 1.39 | |||
| Digi-Reel® | 1 | $ 3.82 | ||
| 10 | $ 2.51 | |||
| 25 | $ 2.17 | |||
| 100 | $ 1.79 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.49 | |||
| 1000 | $ 1.39 | |||
| Tape & Reel (TR) | 3000 | $ 1.27 | ||
| 6000 | $ 1.21 | |||
Description
General part information
MASW-009482 Series
RF Switch IC General Purpose SP3T 50Ohm 12-STQFN (2x2)
