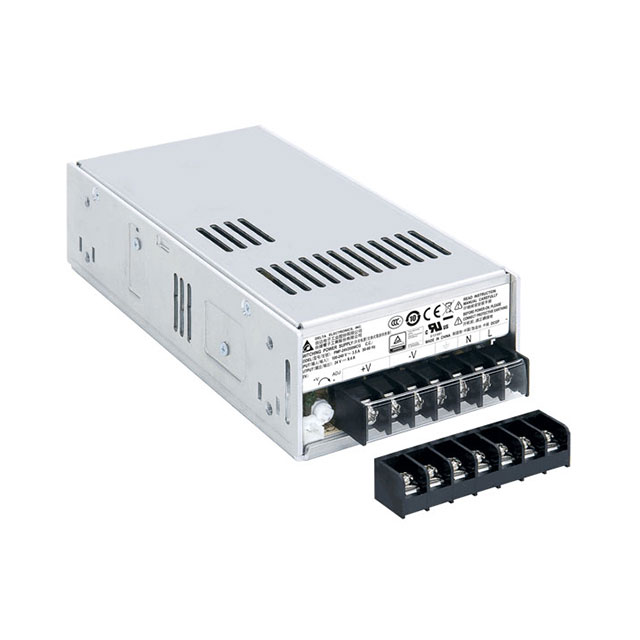

PMF-24V200WCAB

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	PMF-24V200WCAB

Applications	ITE (Commercial)
Approval Agency	CCC, CE, cURus, TUVgs, CB
Current - Output 1	8.4 A
Efficiency	87 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	200 W
Size / Dimension [x]	7.48 "
Size / Dimension [x]	190 mm
Size / Dimension [y]	93 mm
Size / Dimension [y]	3.66 in
Size / Dimension [z]	50 mm
Size / Dimension [z]	1.97 "
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Voltage - Isolation	Type	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Features	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Efficiency	Voltage - Output 1
Delta Electronics PMF-24V200WCAR	200 W	3000 V	Enclosed	CB CCC CE cURus TUVgs	50 mm	1.97 "	7.48 "	93 mm	3.66 in	190 mm	Chassis Mount	Adjustable Output PFC Remote On/Off Universal Input	1	ITE (Commercial)	-10 °C	70 °C	8.4 A	87 %	24 V
Delta Electronics PMF-24V200WCAB	200 W	3000 V	Enclosed	CB CCC CE cURus TUVgs	50 mm	1.97 "	7.48 "	93 mm	3.66 in	190 mm	Chassis Mount	Adjustable Output PFC Universal Input	1	ITE (Commercial)	-10 °C	70 °C	8.4 A	87 %	24 V
Delta Electronics PMF-24V200WCGB	200 W	3000 V	Enclosed	CB CCC CE cURus TUVgs	50 mm	1.97 "	7.48 "	93 mm	3.66 in	190 mm	Chassis Mount	Adjustable Output PFC Universal Input	1	ITE (Commercial)	-10 °C	70 °C	8.4 A	87 %	24 V
Delta Electronics PMF-24V240WCGR	240 W	3000 V	Enclosed	CB CCC CE cURus TUVgs	50 mm	1.97 "	7.48 "	93 mm	3.66 in	190 mm	Chassis Mount	Adjustable Output PFC Remote On/Off Universal Input	1	ITE (Commercial)	-10 °C	70 °C	10 A	87 %	24 V
