SHIELDBTS70041EPZTOBO1

Active

Infineon Technologies

EVAL BOARD, HIGH SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN

SHIELDBTS70041EPZTOBO1

Active

Infineon Technologies

EVAL BOARD, HIGH SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SHIELDBTS70041EPZTOBO1

Contents	Board(s)
Function	Switch
Type	Power Management
Utilized IC / Part	BTS7004-1EPZ

SHIELDBTS70041 Series

Part	Contents	Function	Type	Utilized IC / Part
Infineon Technologies SHIELDBTS70041EPZTOBO1	Board(s)	Switch	Power Management	BTS7004-1EPZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.25
Newark	Each	1	$ 98.95

Description

General part information

SHIELDBTS70041 Series

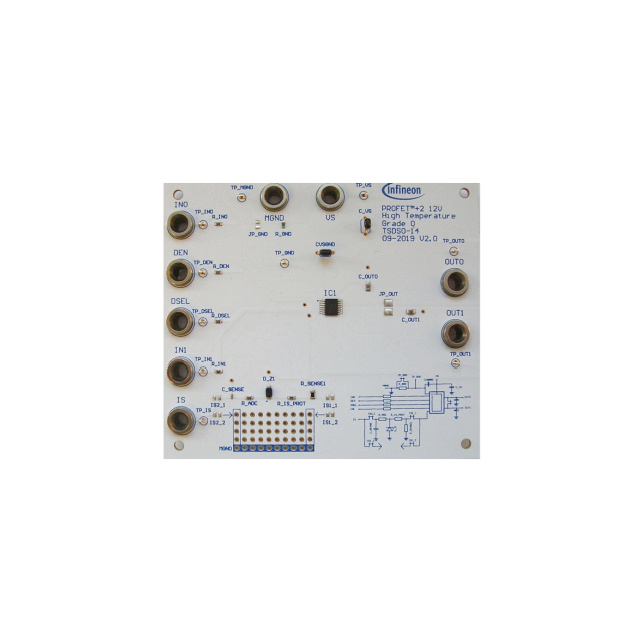

This PROFET™+2 12V Grade0 Evaluation board is high temperature resistant up to 175°C and comes with 1 high-side switch ofBTS7004-1EPZ. The purpose of this board is to provide a quick and easy solution for customers’ lab evaluations. The PROFET™+2 12V Grade0 Evaluation board is capable to drive resistive, capacitive and/or inductive loads.
