195207-225

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

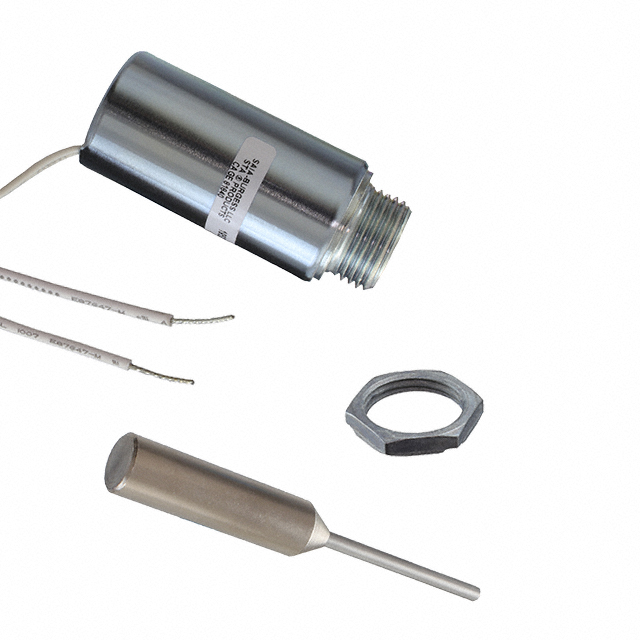

TUBULAR SOLENOID STA PUSH 1 X 2

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

TUBULAR SOLENOID STA PUSH 1 X 2

Technical Specifications

Parameters and characteristics commom to parts in this series

TUBULAR SOLENOID STA PUSH 1 X 2

Part	Technology	Stroke Length	Stroke Length	Power (Watts)	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Bushing Thread	DC Resistance (DCR)	Duty Cycle	Shaft Detail	Termination Style	Type
Ledex Dormeyer Saia, a Division of Johnson Electric 195207-225	Electromechanical	17.78 mm	0.7 in	29.4 W	12 VDC	0.125 in	3.18 mm	50.8 mm	25.4 mm	25.4 mm	50.8 mm	3/4-16 UNF	4.9 Ohm	Intermittent	Round	Wire Leads	Closed Frame (Push), Tubular
Ledex Dormeyer Saia, a Division of Johnson Electric 195207-228	Electromechanical					0.125 in	3.18 mm	50.8 mm	25.4 mm	25.4 mm	50.8 mm	3/4-16 UNF	19.2 Ohm		Round	Wire Leads	Closed Frame (Push), Tubular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Intermittent Duty Solenoid Closed Frame (Push), Tubular Type 0.700" (17.78mm) Stroke 12VDC Panel Mount
