Technical Specifications
Parameters and characteristics for this part
| Specification | SPC5-MCTK-01 |
|---|---|
| Embedded | MCU, 32-Bit |
| Embedded | True |
| Function | Motor Controller/Driver |
| Secondary Attributes | Graphical User Interface (GUI) |
| Supplied Contents | Board(s), Accessories, Cable(s) |
| Type | Power Management |
| Utilized IC / Part | SPC560P, L9907 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 682.80 | |
Description
General part information
SPC5-EV-ADIS Series

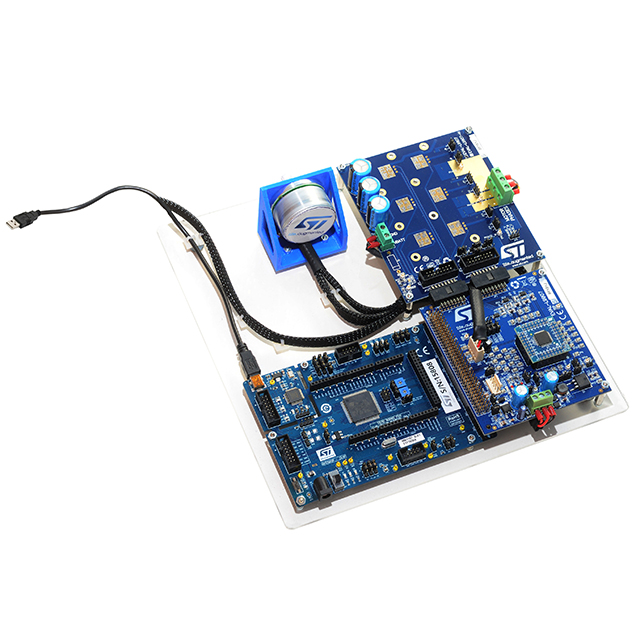

The SPC5-MCTK-01 Automotive Motor Controller Toolkit bundles combines both SPC560P automotive microcontroller the L9907 driver and is now available for purchase on the st.com website, together with the Field Oriented Control library (SPC5-MCTK-LIB) and monitoring tools. The kit includes a 24V, 64 Watt motor to simplify the set-up time.
The hardware is made of SPC560P-DISP MCU platform and EVAL-L9907 evaluation boards and inverter.
Software is a key component of the platform and the library is designed for flexibility and ease of integration into multiple SPC5 automotive microcontroller platform. Today both automotive microcontrollers SPC560P and SPC56EL are supported.
