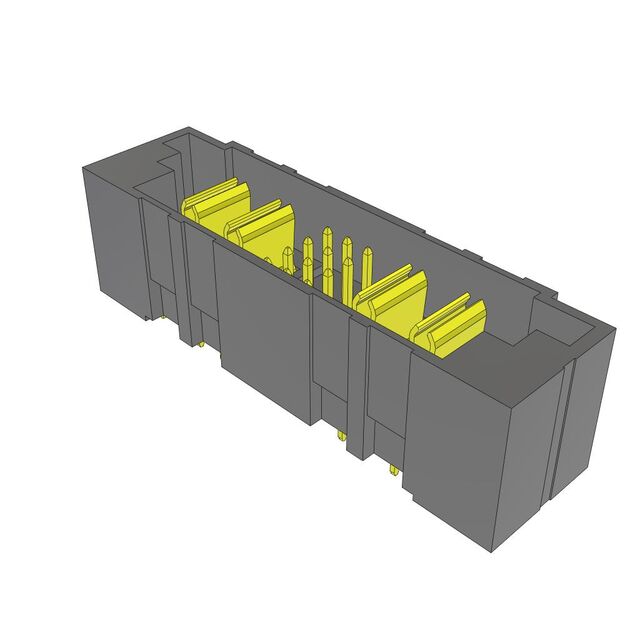

PETC-02-12-02-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/POW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PETC-02-12-02-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/POW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PETC-02-12-02-01-S-VT-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.35 mm
Contact Length - Post	0.093 in
Contact Material	Copper Alloy
Contact Type	Male Pin, Male Blade
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.575 in
Insulation Height	14.6 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions [custom]	4
Number of Positions [x]	12
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Termination	Solder

PETC-02 Series

Power to the Board .100" PowerStrip/40 A Signal/Power Combo Terminal Strip

Part	Termination	Contact Finish - Mating	Contact Type	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Contact Material	Connector Type	Shrouding	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Length - Post	Contact Length - Post	Number of Positions [x]	Number of Positions [custom]
Samtec Inc. PETC-02-40-02-01-L-RA-LC	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in	44	10 çin	0.25 çm	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C
Samtec Inc. PETC-02-40-02-01-S-RA-SD	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in	44	30 Áin	0.76 Ám	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C	Mounting Flange
Samtec Inc. PETC-02-40-02-01-L-VT-LC	Solder	Gold	Male Blade Male Pin	Black	14.6 mm	0.575 in	44	10 çin	0.25 çm	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C		2.35 mm	0.093 in
Samtec Inc. PETC-02-40-02-01-S-RA-LC	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in	44	30 Áin	0.76 Ám	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C
Samtec Inc. PETC-02-12-02-01-S-RA-SD-L	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in		30 Áin	0.76 Ám	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C	Mounting Flange			12	4
Samtec Inc. PETC-02-40-02-01-L-RA-SD	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in	44	10 çin	0.25 çm	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C	Mounting Flange
Samtec Inc. PETC-02-12-02-01-L-RA-SD	Solder	Gold	Male Blade Male Pin	Black	14.5 mm	0.571 in		10 çin	0.25 çm	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	125 °C	Mounting Flange			12	4
Samtec Inc. PETC-02-40-02-01-T-VT	Solder		Male Blade Male Pin	Black	14.6 mm	0.575 in	44			All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C		2.35 mm	0.093 in
Samtec Inc. PETC-02-40-02-01-T-RA-SD	Solder		Male Blade Male Pin	Black	14.5 mm	0.571 in	44			All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	105 ░C	Mounting Flange
Samtec Inc. PETC-02-12-02-01-S-VT-LC	Solder	Gold	Male Blade Male Pin	Black	14.6 mm	0.575 in		30 Áin	0.76 Ám	All	Friction Lock	Tin	Copper Alloy	Header	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C		2.35 mm	0.093 in	12	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.01
		10	$ 14.83
		25	$ 13.64
		50	$ 11.86
		100	$ 11.34

Description

General part information

PETC-02 Series

Power to the Board .100" PowerStrip/40 A Signal/Power Combo Terminal Strip

Documents

Technical documentation and resources
