FPG.0B.305.CLAD52

Active

LEMO

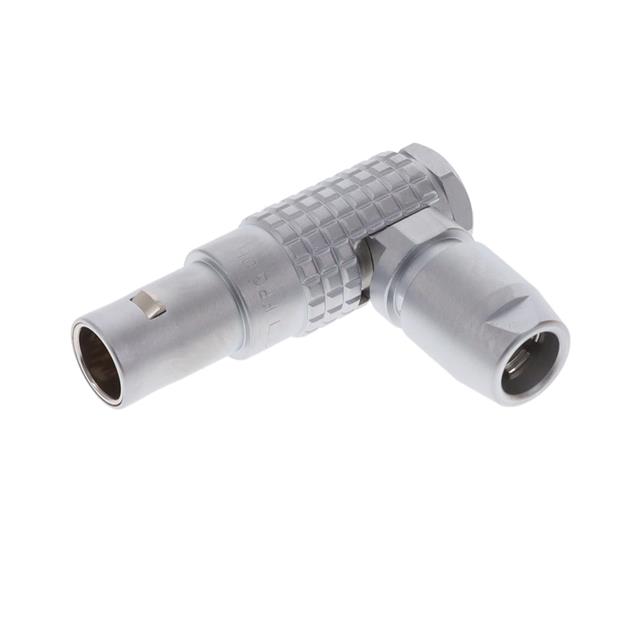

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Unipole, Multipole Catalog

FPG.0B.305.CLAD52

Active

LEMO

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Unipole, Multipole Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.09
		10	$ 55.33
		25	$ 51.86
		50	$ 49.39
		100	$ 47.04

Description

General part information

FPG.0B Series

5 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Unipole, Multipole Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FPG.0B.305.CLAD52	FPG.0B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	6.5 A	2.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	-	2 - 7
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 307
Shielding	Shielded	Shielded
Termination	-	Crimp

FPG.0B Series

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Features	Current Rating (Amps)	Shell Size - Insert	Color	Shell Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shell Finish	Ingress Protection	Orientation	Shielding	Material Flammability Rating	Connector Type	Backshell Material, Plating	Primary Material	Contact Material	Contact Finish - Mating	Fastening Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FPG.0B.304.CLAD52	Backshell	7 A	304	Silver	Brass	4	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FPG.0B.304.CYCD52Z	Backshell	7 A	304	Silver	Brass	4	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm	Crimp
LEMO FPG.0B.305.CYCD52Z	Backshell	6.5 A	305	Silver	Brass		1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm	Crimp
LEMO FPG.0B.307.CLAD42	Backshell	2.5 A	307	Silver	Brass	7	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C					0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FPG.0B.305.CLAD42	Backshell	6.5 A	305	Silver	Brass		1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C					0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FPG.0B.305.CLAD52	Backshell	6.5 A	305	Silver	Brass		1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FPG.0B.302.CLAD52Z	Backshell	10 A	302	Silver	Brass	2	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FPG.0B.307.CLAD52Z	Backshell	2.5 A	307	Silver	Brass	7	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FPG.0B.304.CLAD42	Backshell	7 A	304	Silver	Brass	4	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C					0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FPG.0B.302.CLAD52	Backshell	10 A	302	Silver	Brass	2	1 µm	39.4 µin	Free Hanging (In-Line), Right Angle	Chrome	IP50	G	Shielded	UL94 V-0	Male Pins, Plug	Brass, Chrome	Metal	Brass	Gold	Push-Pull	Polyetheretherketone (PEEK)	-55 °C	250 °C	0.165 in, 0.205 in	4.2 mm	5.2 mm
